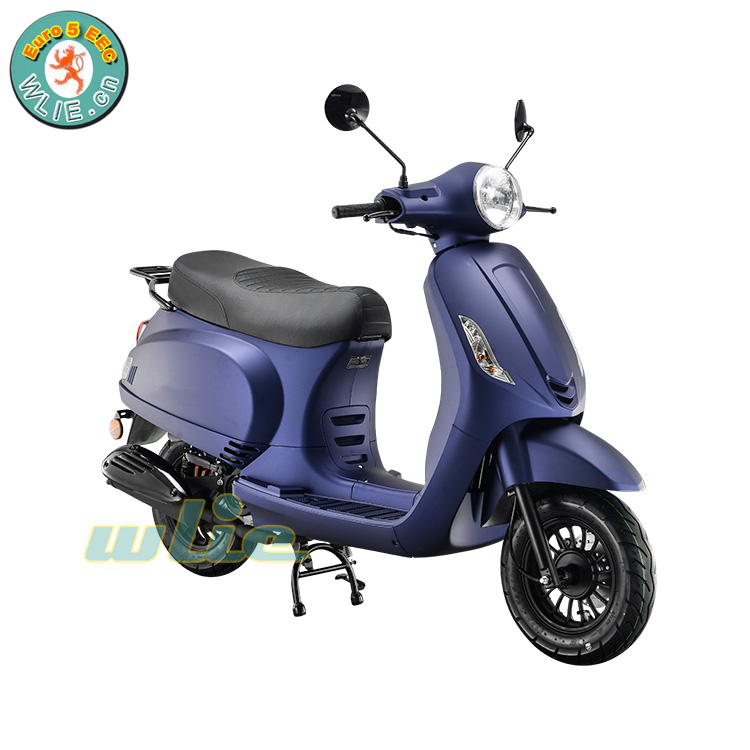

Maple 50-3 (Euro 5) Inquiry
Specifications

With EFI system, Euro 5 EEC Homologated

Specification

Drive system

Belt drive

Front and rear shock

Front hydraulic rear spring shock

Electric and speedmeter

Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

Lighting system

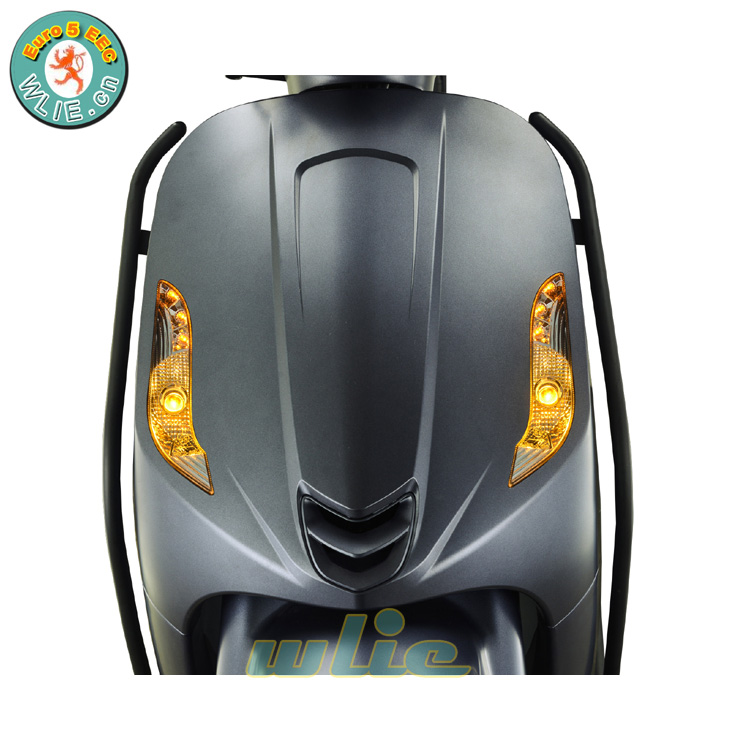

Front headlamp,front and rear winker,rear tail light

Exhaust system

Mute exhaust

Switch control system

Function left and right swtich

Cylinder diameter

39mm

Piston stroke

41.4

Battery type

12V7A

Max power and rotate speed

2.2KW(3.0HP)/7500rpm

Max torque and rotate speed

3.01/5000(N.m/rpm)

Minimum ground clearance(mm)

95

Compression ratio

10.2:1

Unladen mass(kg)

93

Load capacity(kg)

150

Economic oil consumption

≤2.0

Climbing capacity

Angle: 30 degrees

Minimum turning radius

1750MM

Speed change

V type belt stepless speed change



Selling Points of the product:

1,It can match multi-color and stickers.

2,We can do 125cc power, also do we can do 50cc and 150cc models.

3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tyre is wear-resisting and aiti-explosion.

4,Disc brake has high safety performance and has no noise.

5,The motorcycle can install rear box and rear carrier.

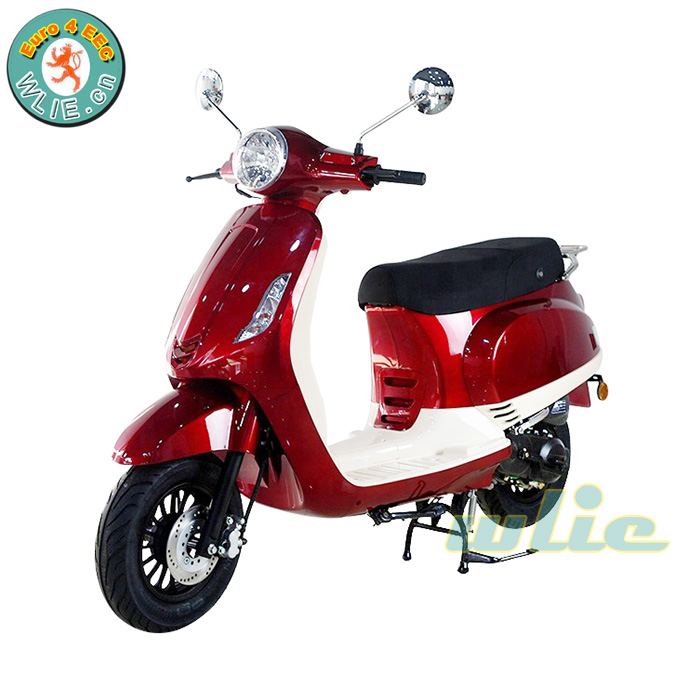

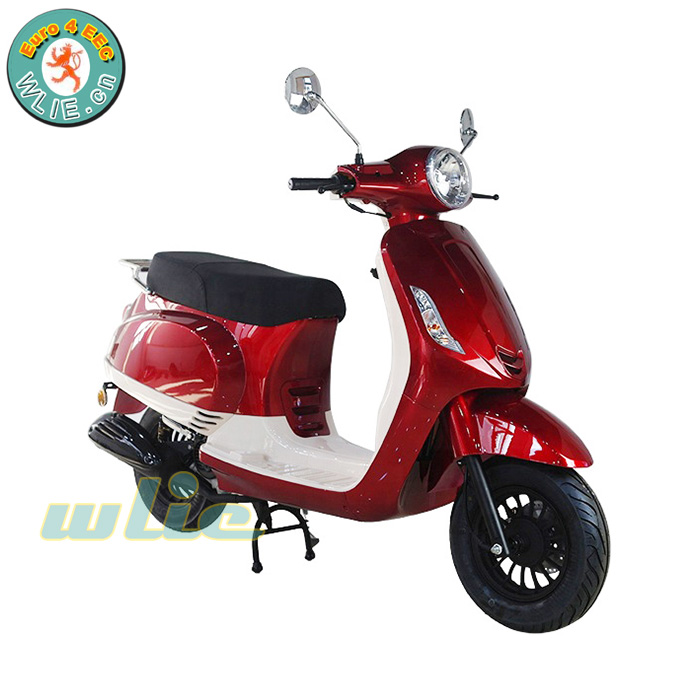

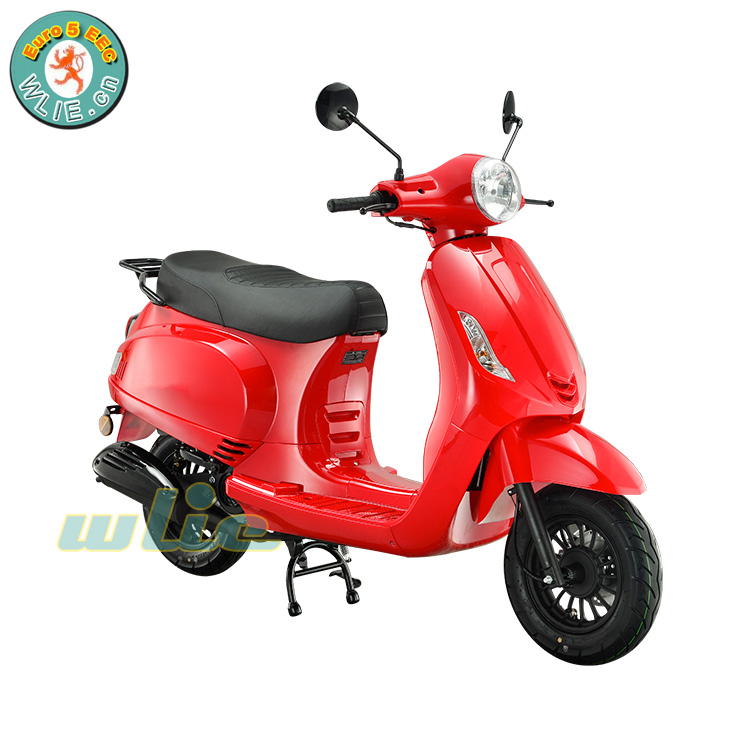

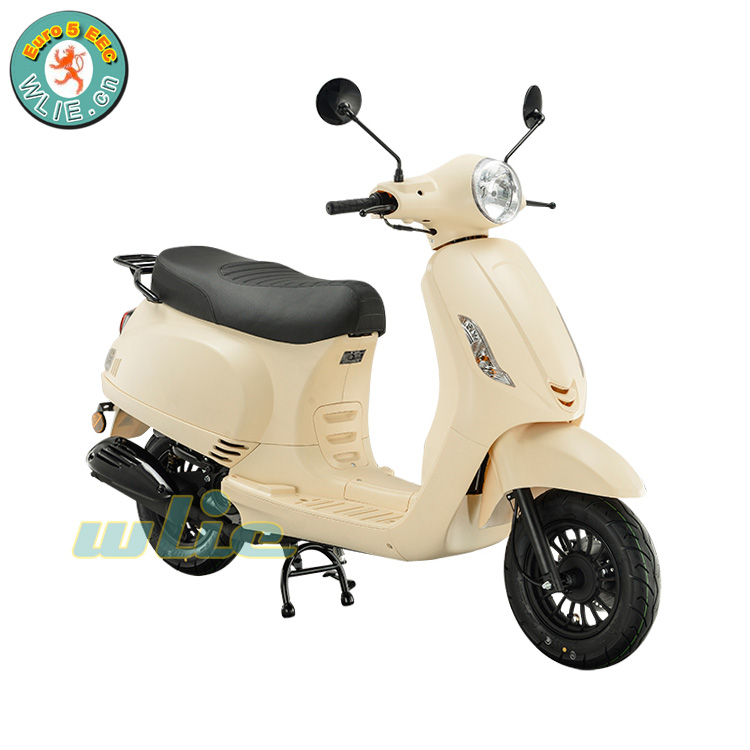

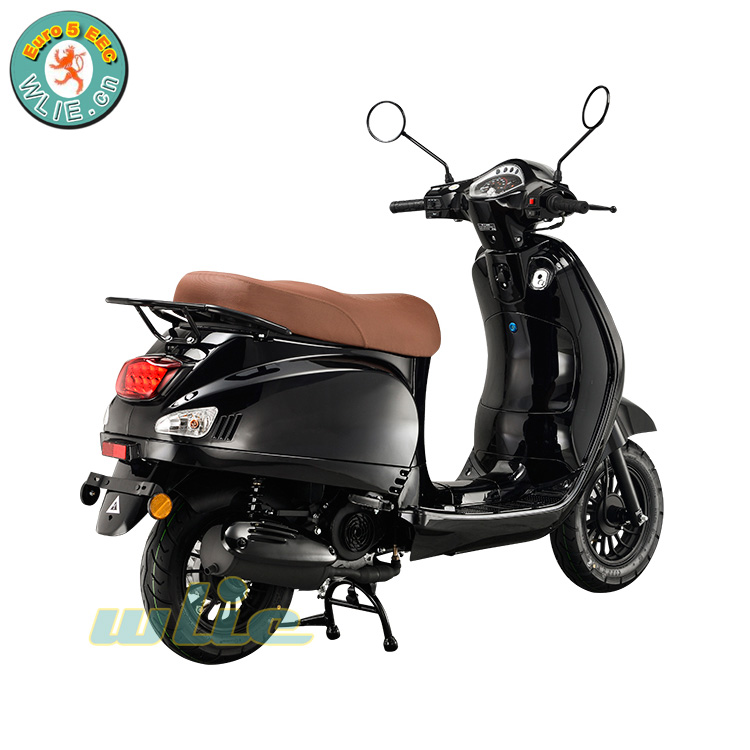

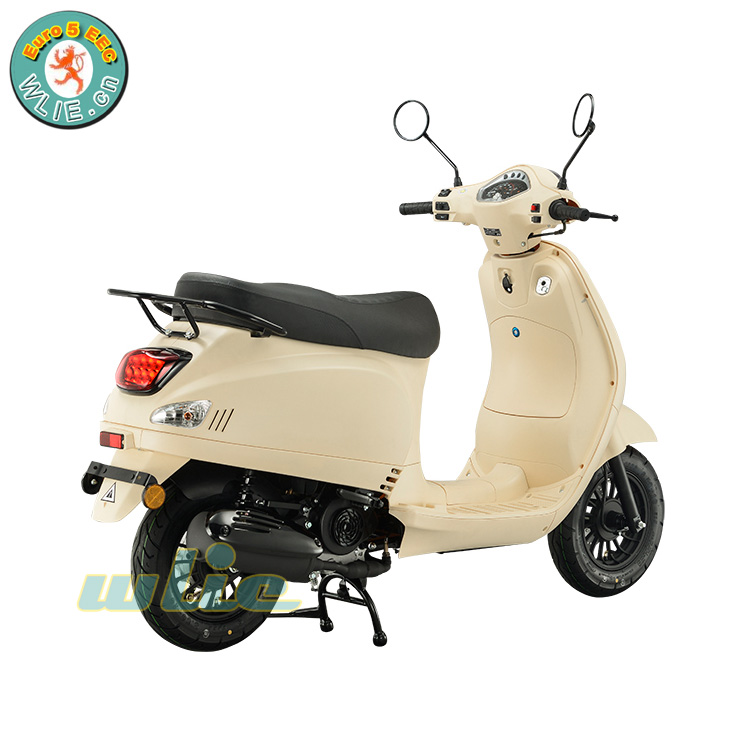

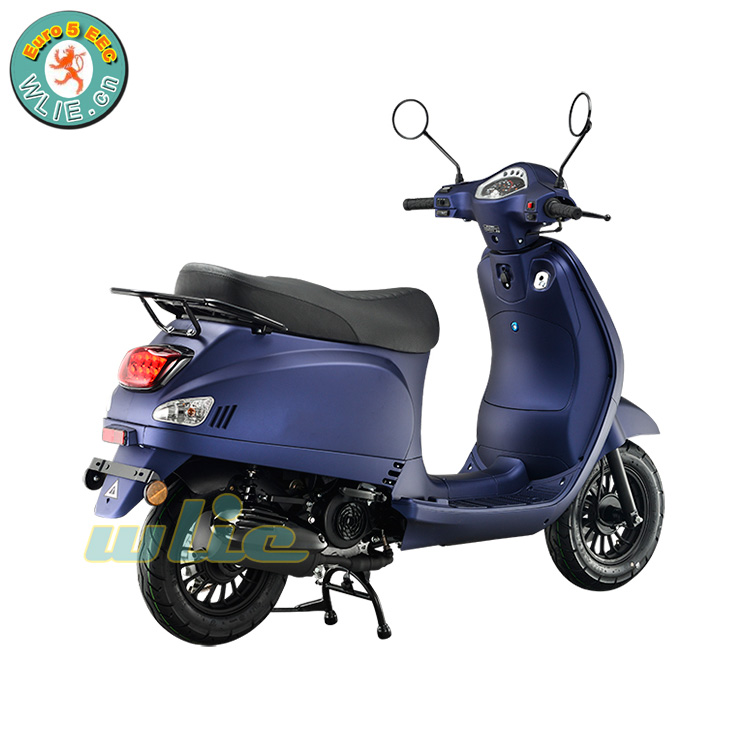

Color sample of the product

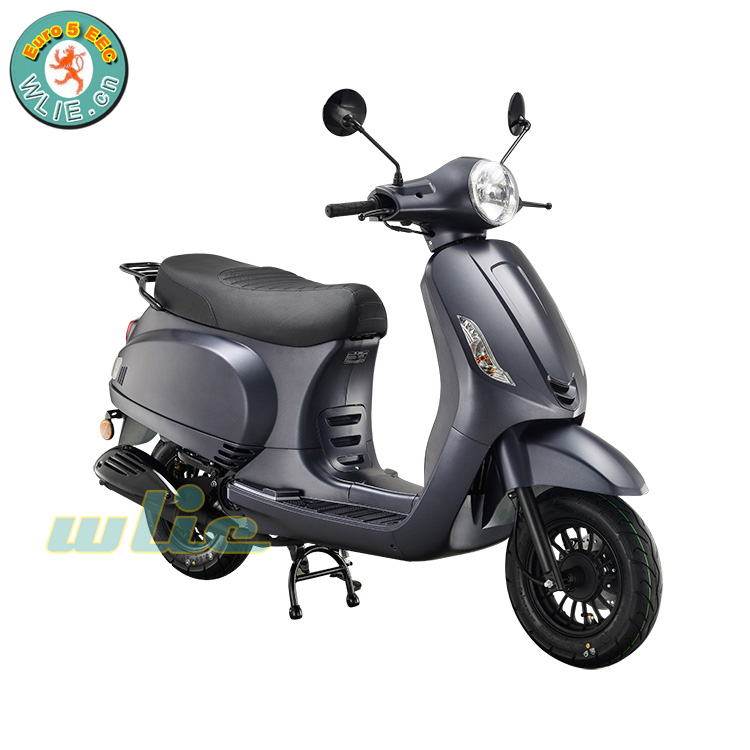

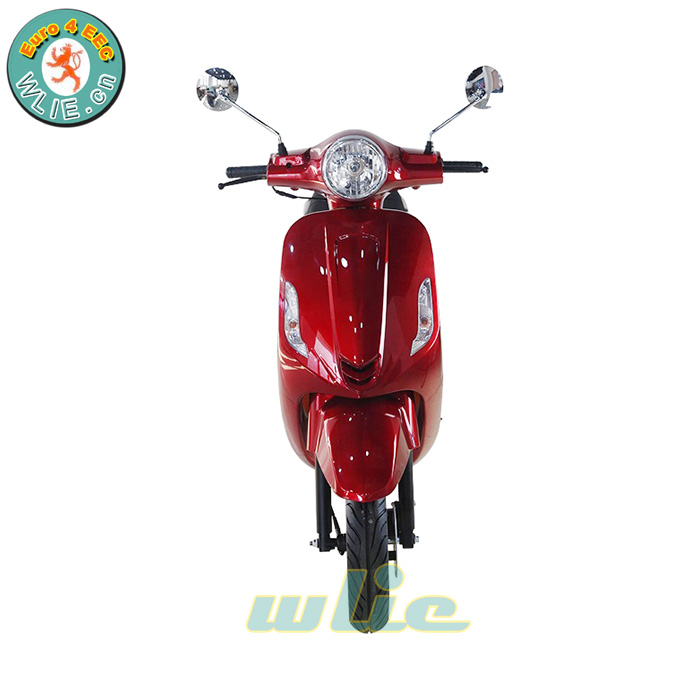

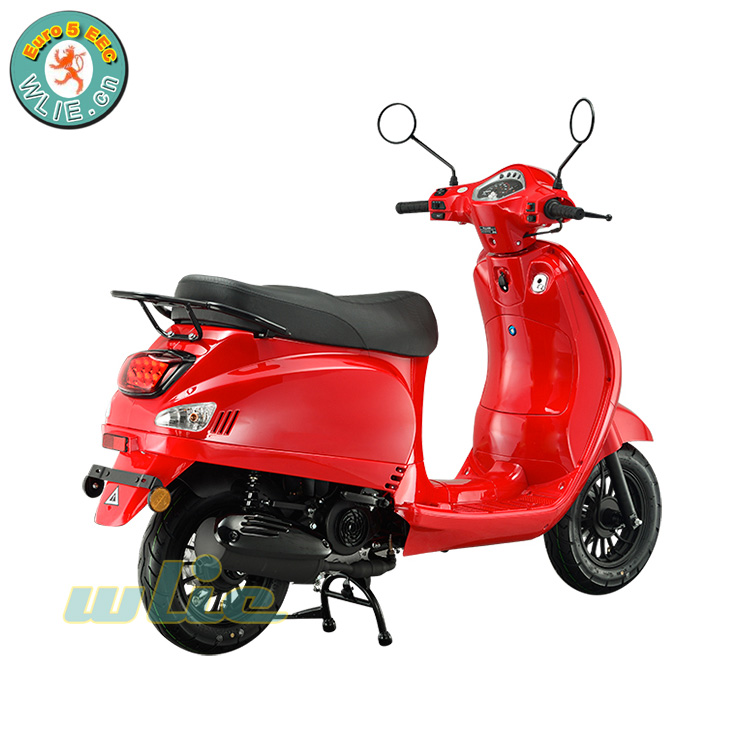

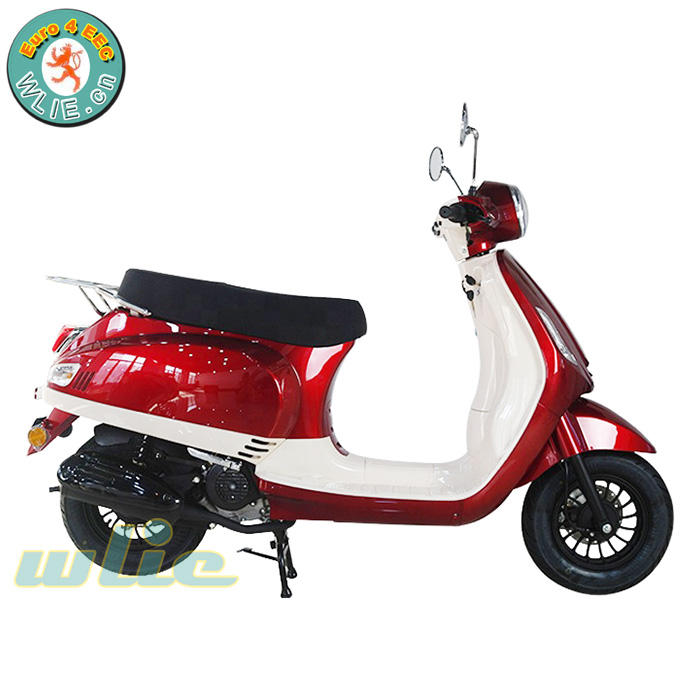

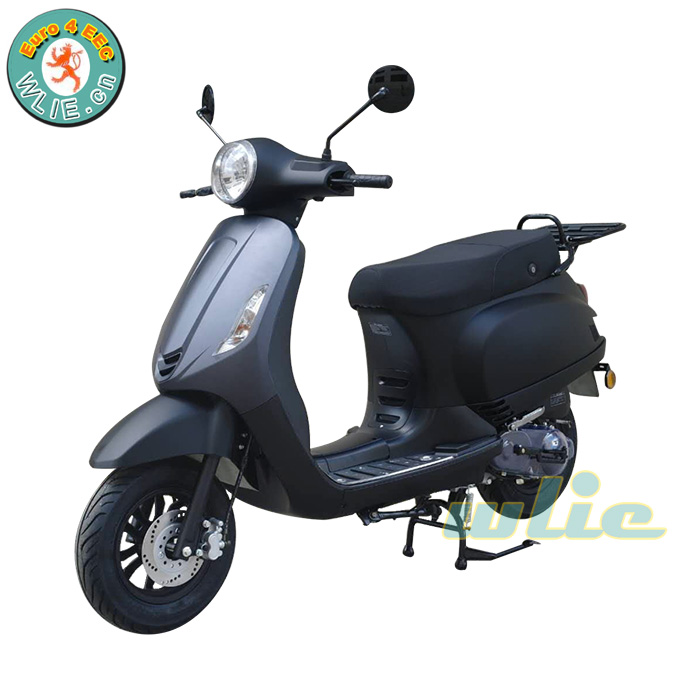

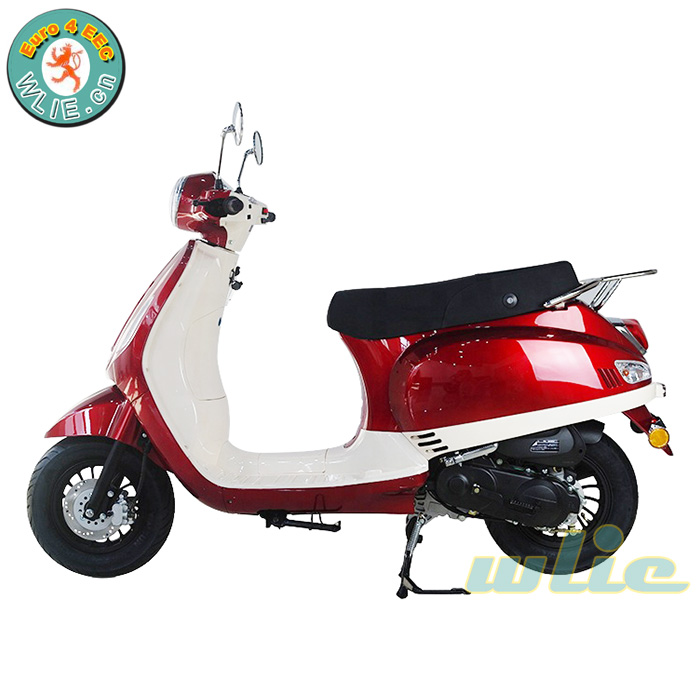

Multi-angle picture

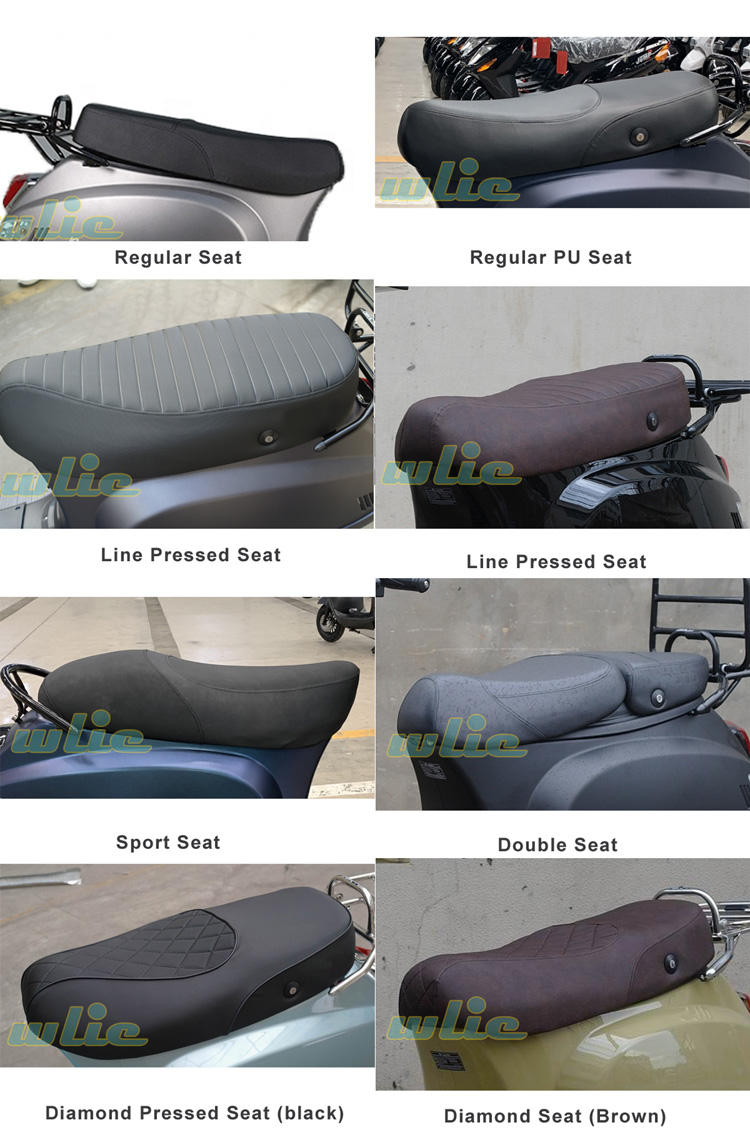

Seat choices:


Product certificate


Accessories for Maple-2

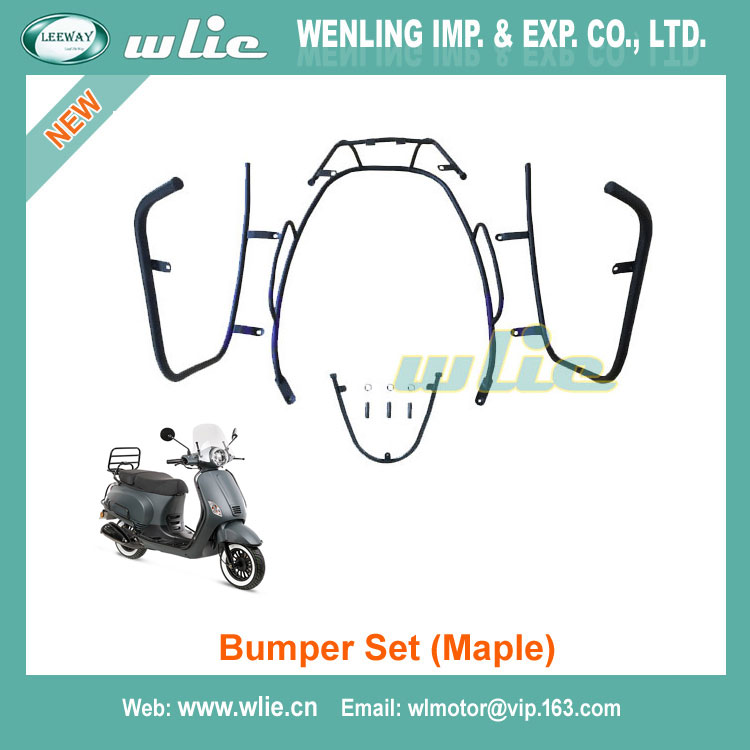

Check the link: Bumper Set for Maple-1

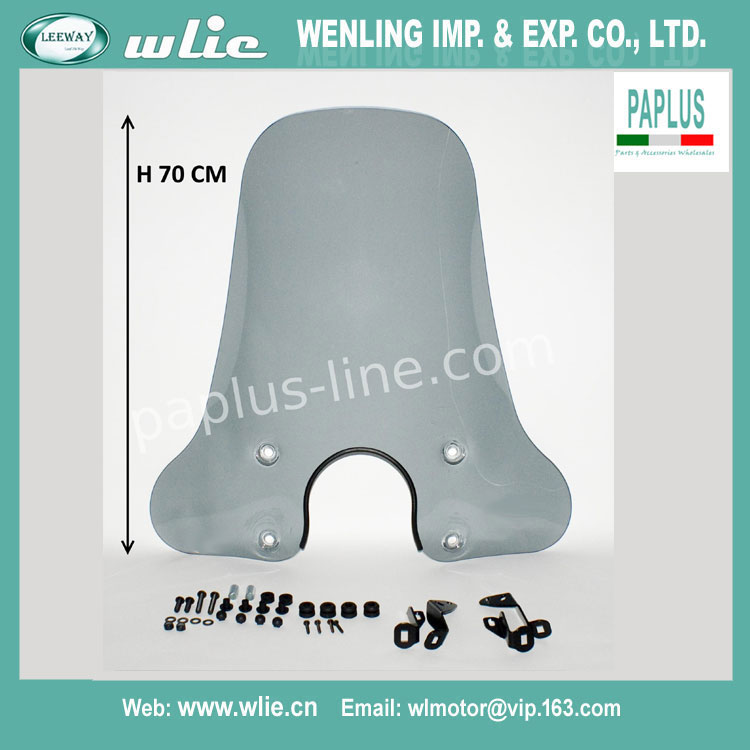

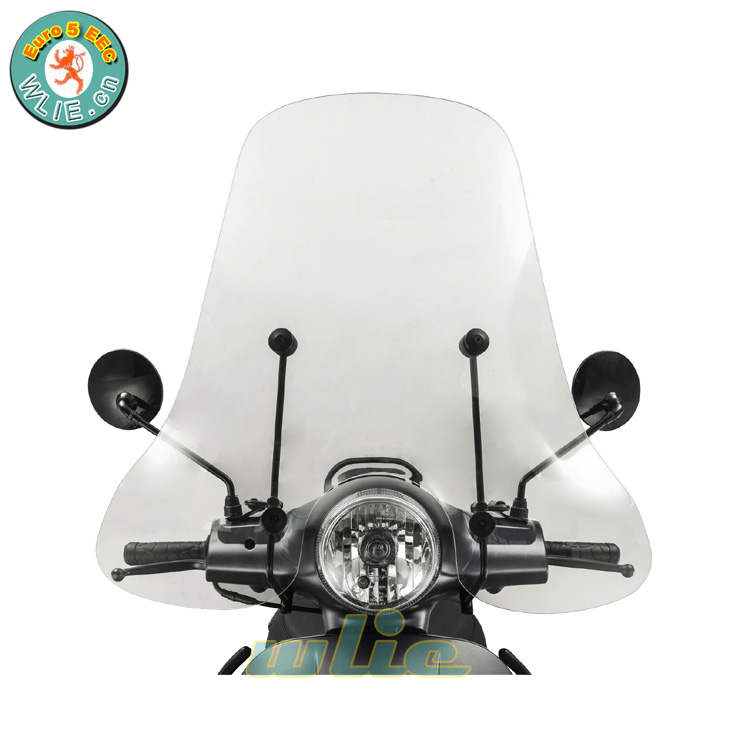

Check the link: Windshield for Maple-2
