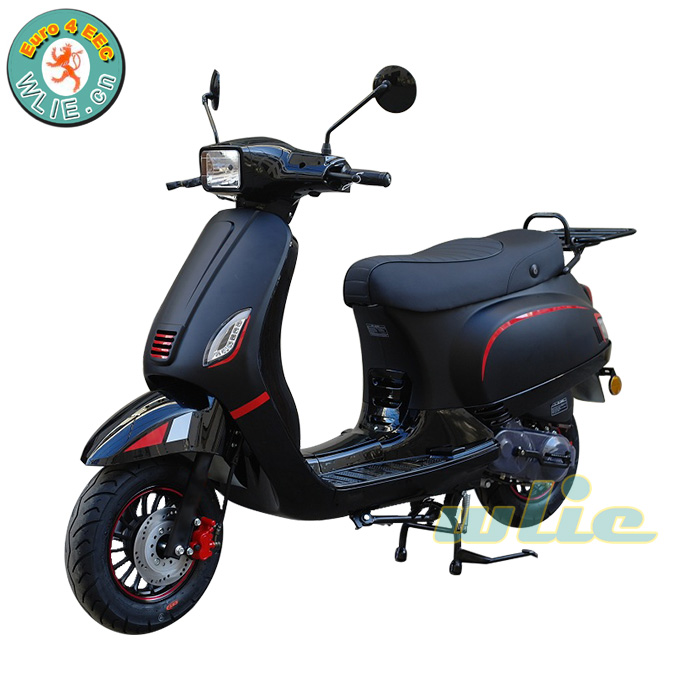

Maple 125-S (Euro 5) Inquiry
Specifications

 Displacement(ml) 124.6
 Engine NO. 152QMB
 Motorcycle body material ABS, PP
 Max speed(km/h) 80
 Fuel tank capacity(L) 5.5
 Tyre size 3.50-10  3.50-10
 Brake Mode Disc/drum
 Dimensions (length*width*height) (mm) 1820*685*1135mm
 Engine type single cylinder,4 stroke
 Cylinder diameter(mm) 52.4
 Piston stroke 57.8
 Battery type  12V7A
 Max power and rotate speed  6.0kw(3.00HP)/7500r/min
 Max torque and rotate speed 8.4N.m/6500r/min
 Minimum ground clearance(mm) 95
 Compression ratio 9.2:1
 Unladen mas(kg) 93
 Load capacity(kg) 150
 Economic oil consumption ≤2.8
 Climbing capacity Angle: 17 degrees
 Minimum turning radius(mm) 1305


Selling Points of the product

1,It can match multicolor and stickers

2,We can do 125CC power, also do we can do 50CC models.

3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.

4,Disc brake has high safety performance and has no noise

5,The motorcycle can install rear box and rear carrier

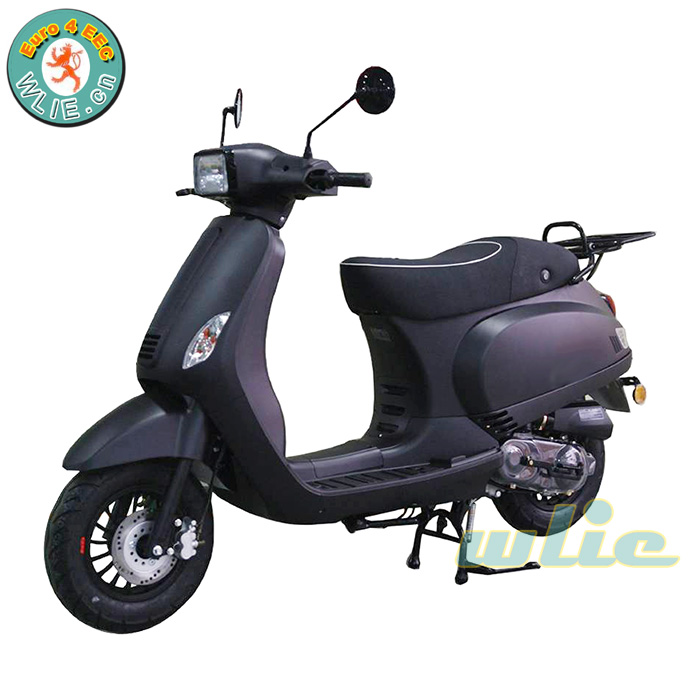

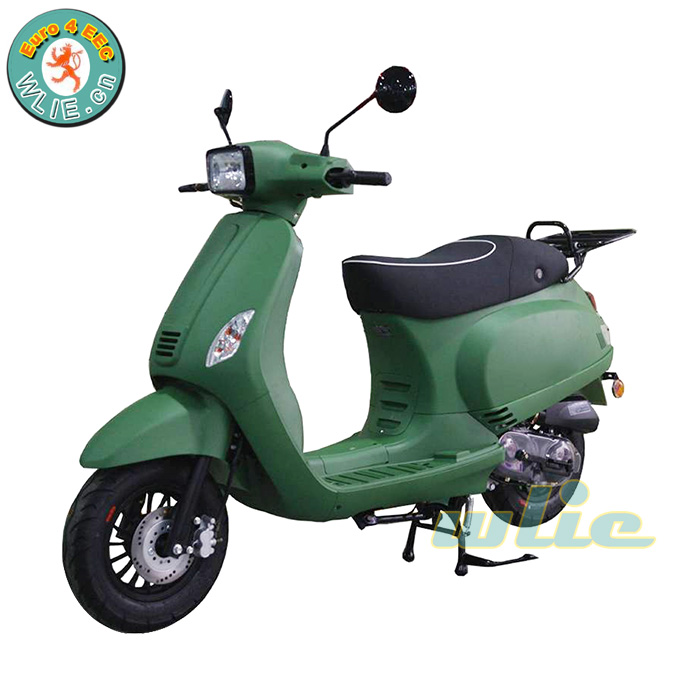

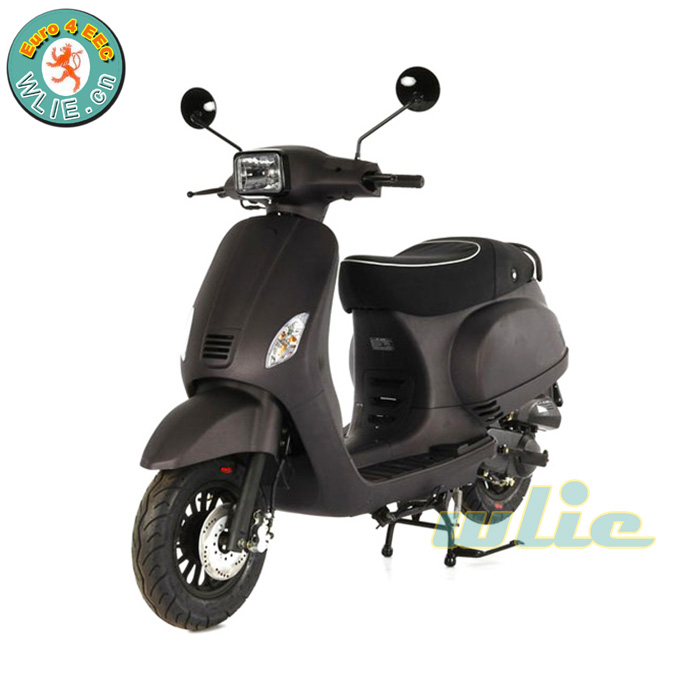

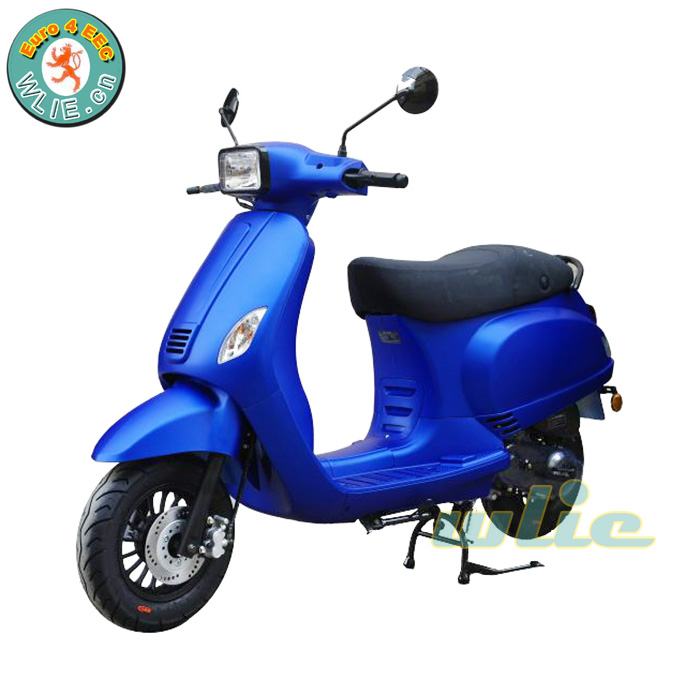

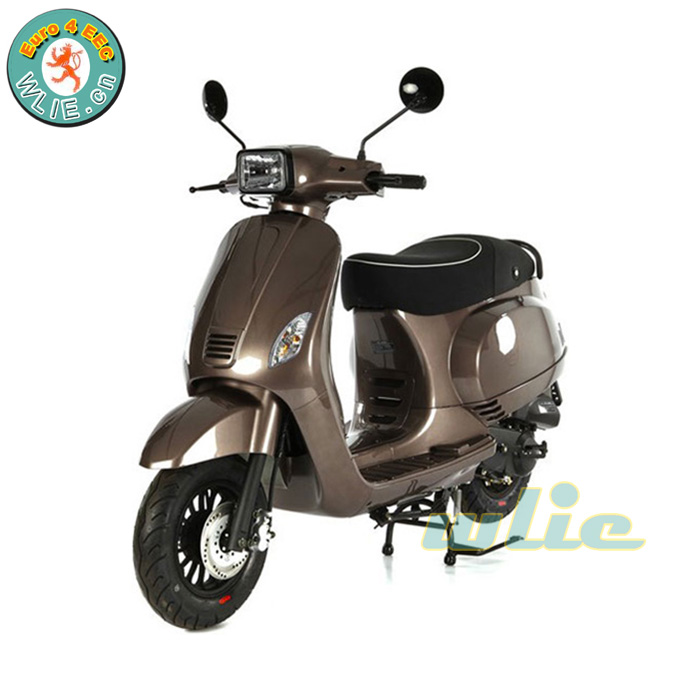

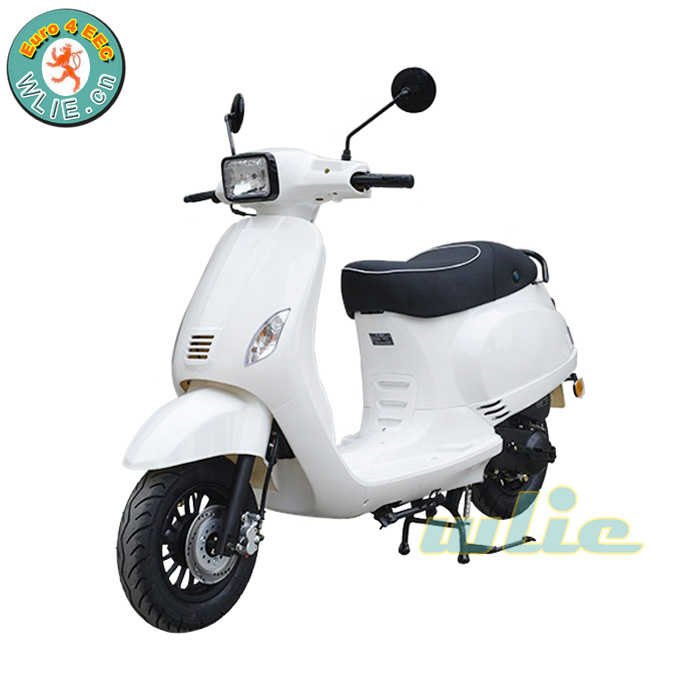

Color Sample of the product

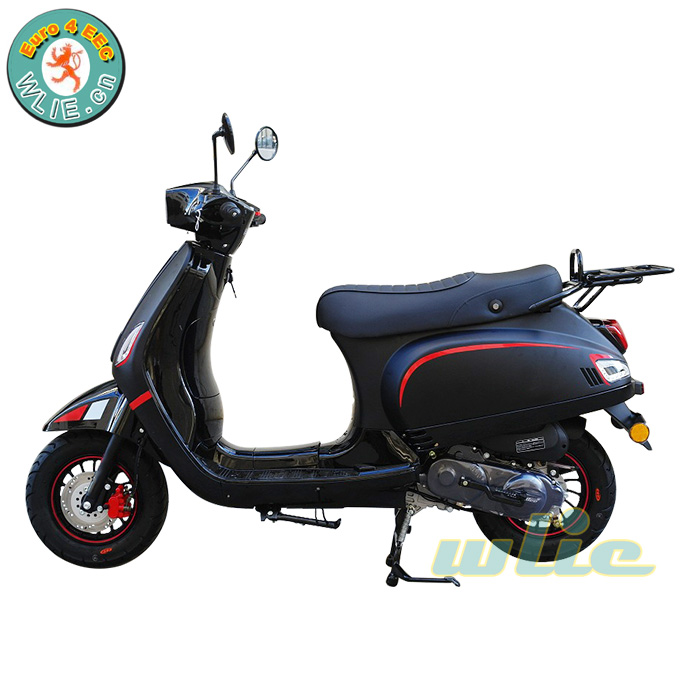

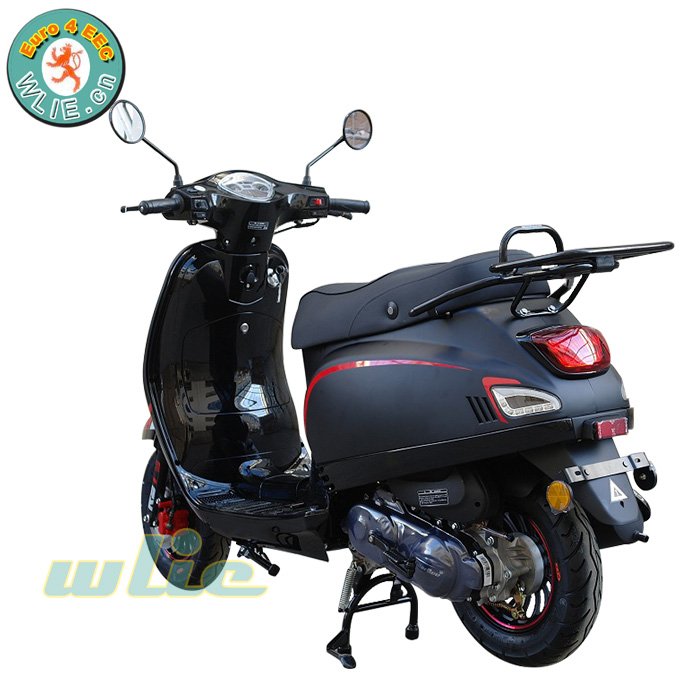

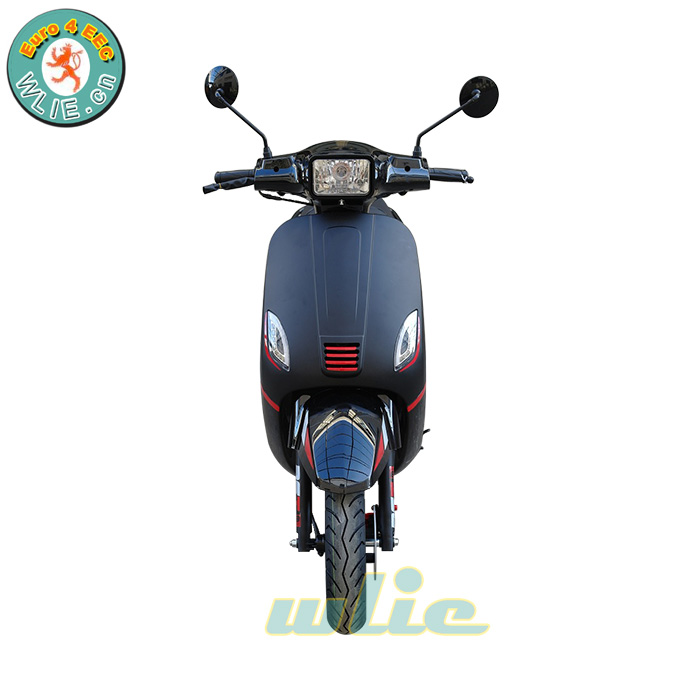

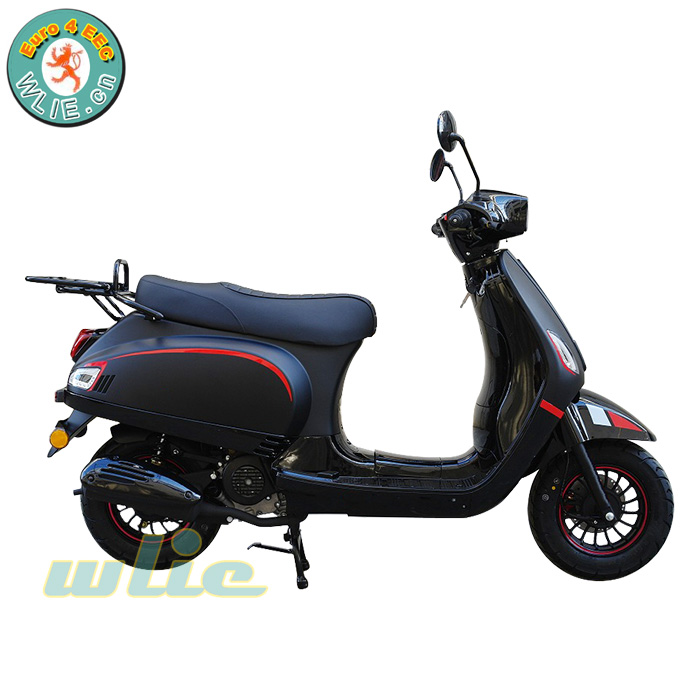

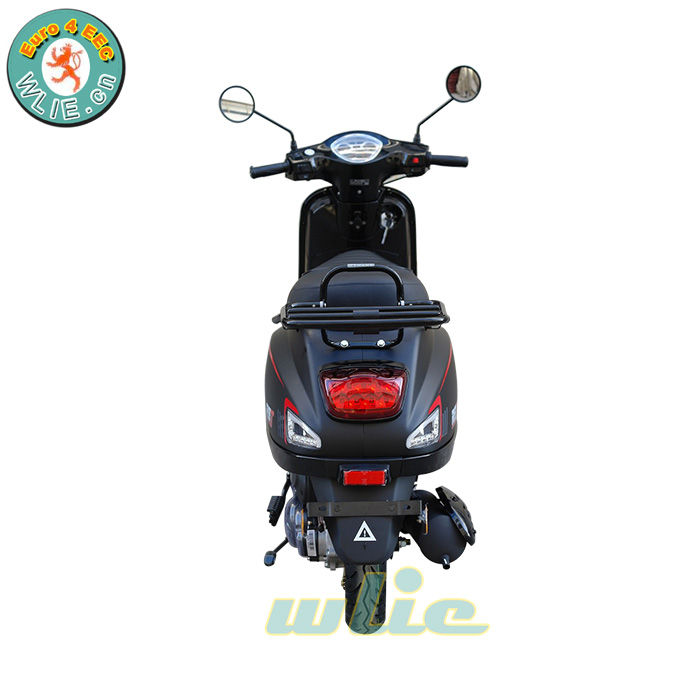

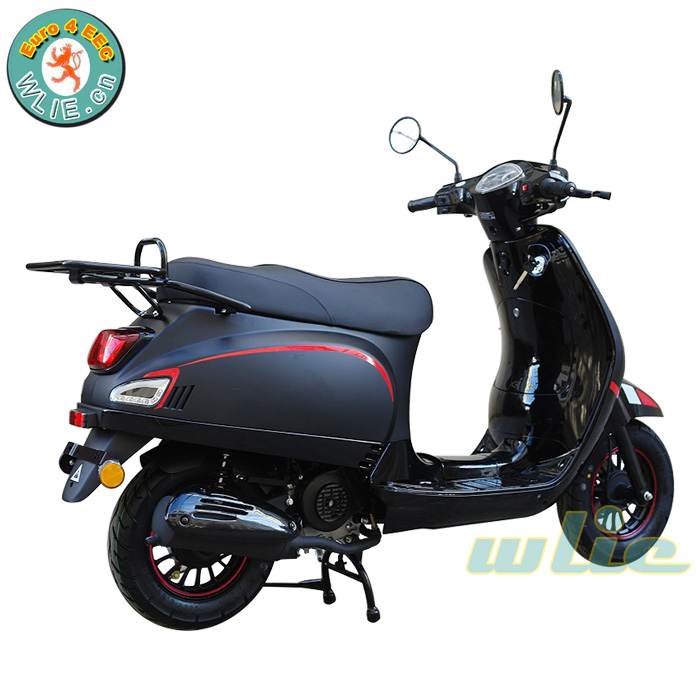

Multi-angle pictures


Detail pics of the product


Different Seat choice:




Certificate of the product



Accessories for Maple-S

Check the link: Bumper Set for Maple-S



Check the link: Windshield for Maple-S
