| Dax 125 (Euro 5) Inquiry |
Specifications
Euro 5 EEC & COC, 125cc, EFI system, Disc/Disc brake
| MODEL | DAX 125 (Euro 5) |
| 1.(L*W*H)mm | 1590*555*1015 |
| 2.(SEAT HEIGHT)mm | 800 |
| 3.(WHEELBASE)mm | 1055 |
| 4.(CLEARANCE)mm | 250 |
| 5.(N.W./G.W.)kg | 80 |
| 6.(ENGINE) | Single Cylinder, 4-Stroke, Air cooled |
| 7.(DISPLACEMENT)ml | 123 |
| 8.(BORE*STROKE) | 52.4mm X 57mm |
| 9.(COMPRESSIONRATE) | 9.0:1 |
| 10.(MAX POWER) | 6.3±5%(7500±500r)/min |
| 11.(START MODE) | (KICK/ELEC START) |
| 12.(FUEL TANK) | 3.5L |
| 13.(IGNITION MODE) | EFI |
| 14.(BATTERY) | 12V/4AH |
| 15.(GEARS) | (INTERNATIONAL 4GEARS) |
| 16.(TYREFRONT/REAR) | 3.50-10/3.50-10 |
| 17.(BRAKE) | (Front:DISC Rear:DISC) |
| 18.(Qty/per container) | 63/20" 126/40" |
| 19.(Carton Size)cm | 135*45*78 |

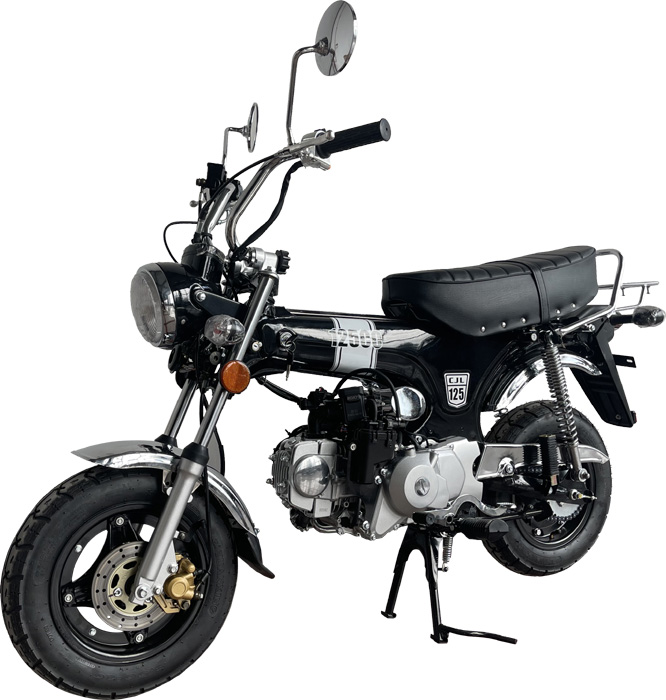

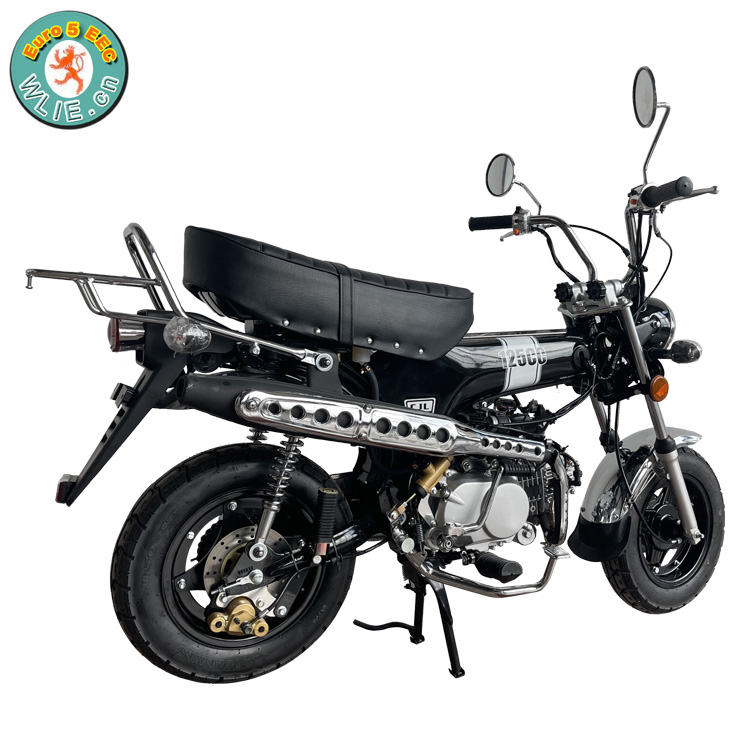

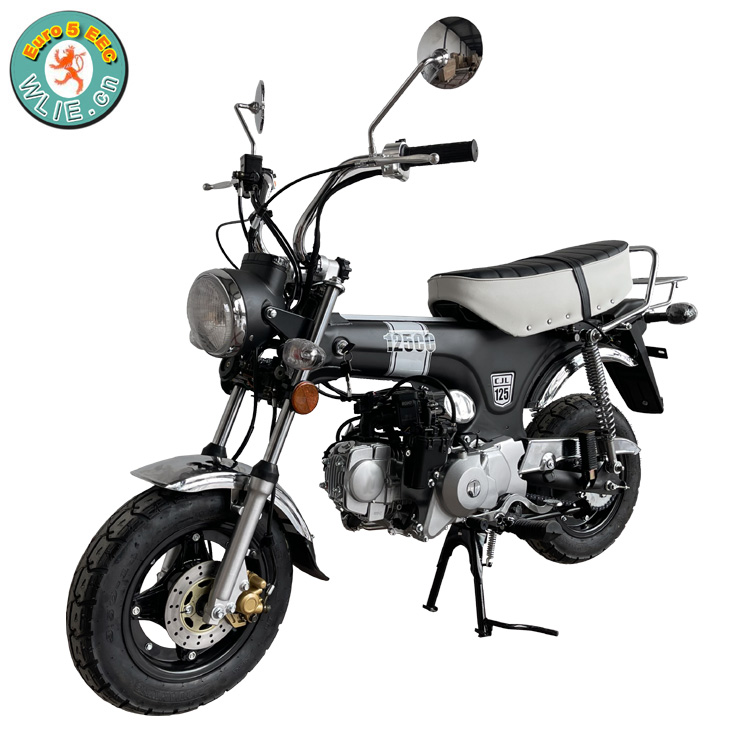

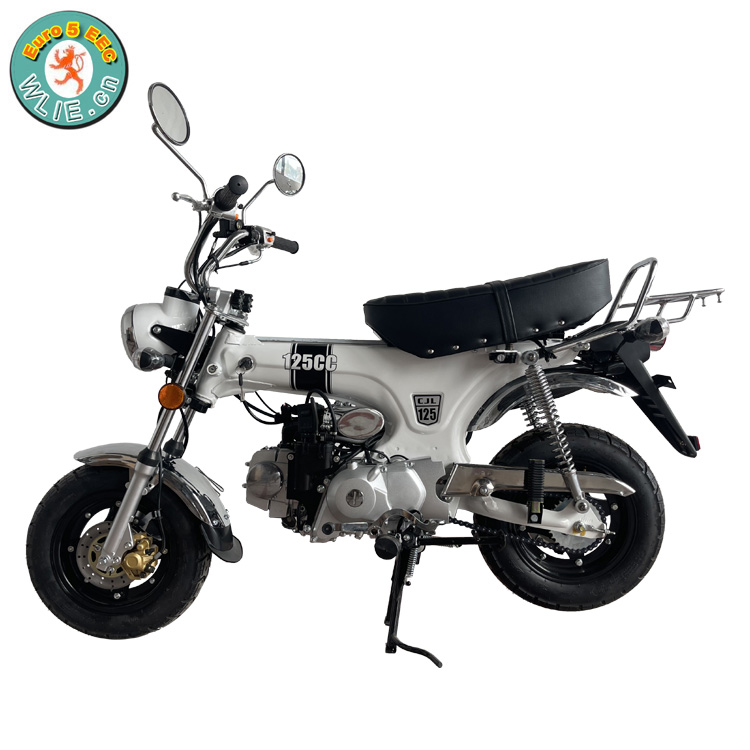

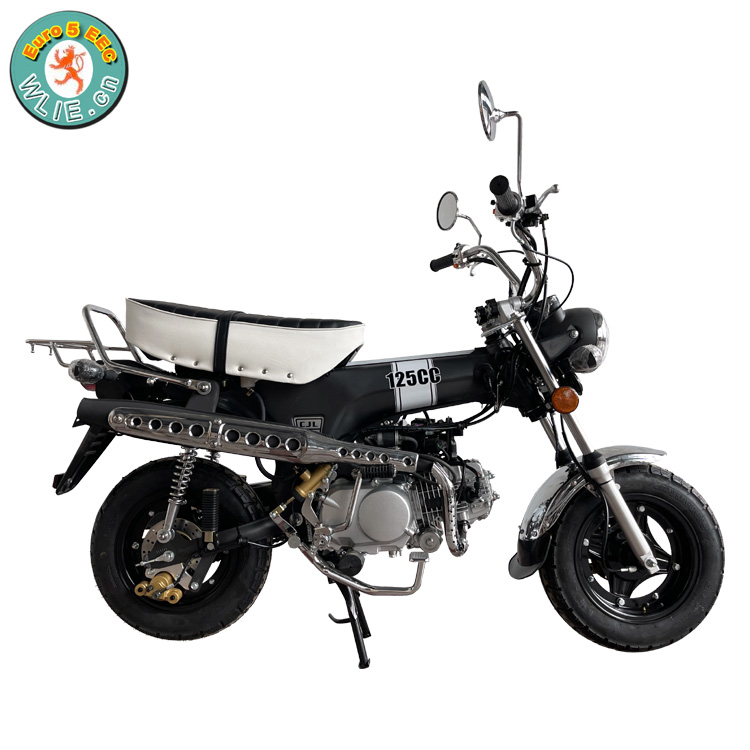

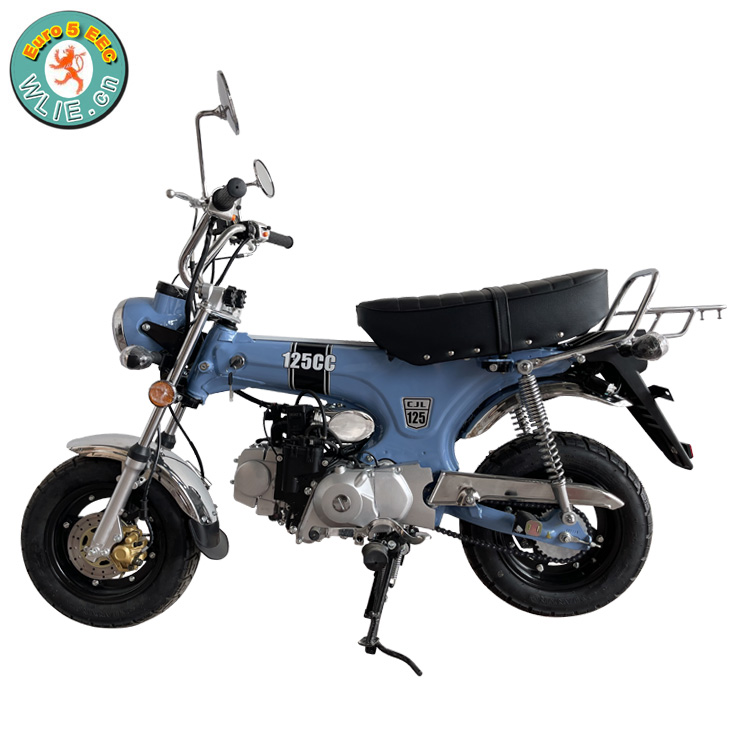

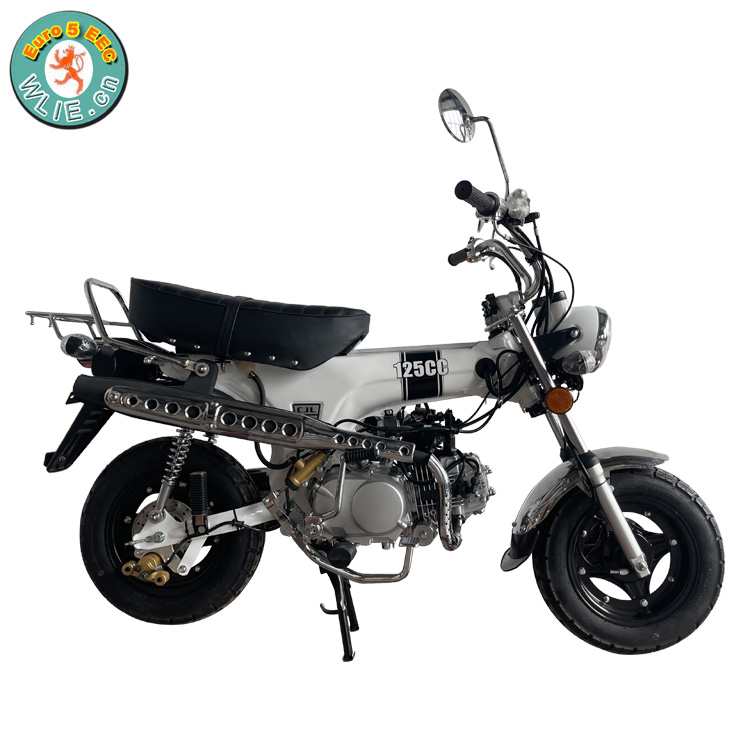

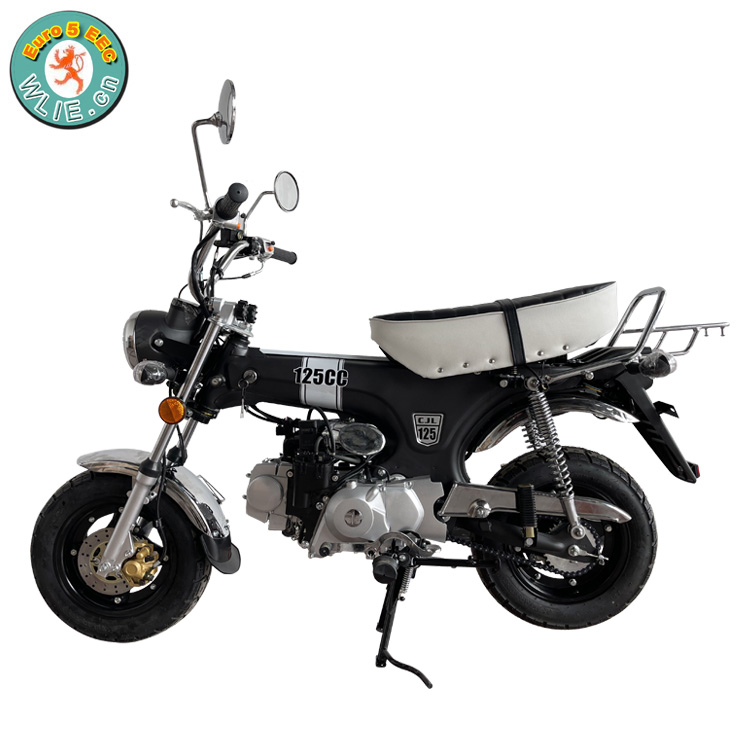

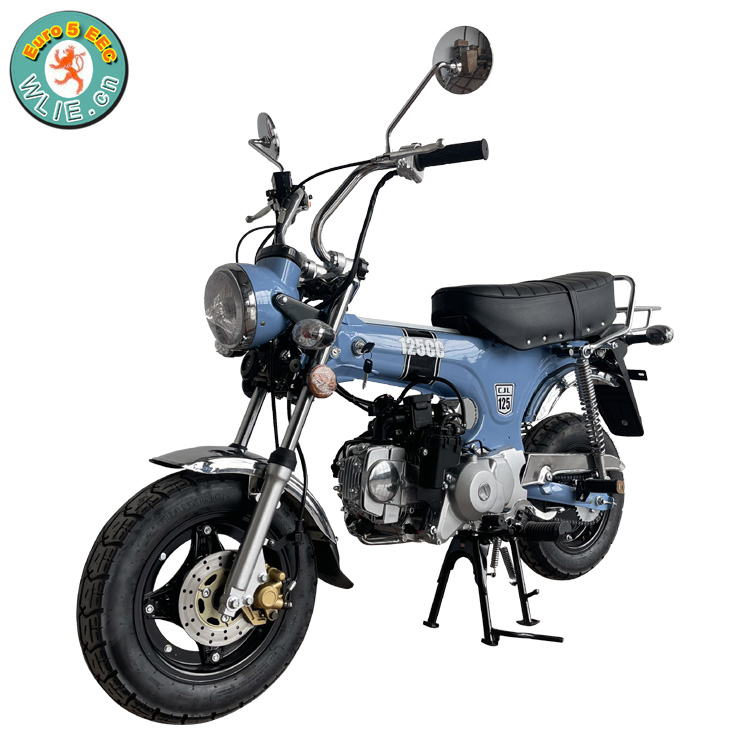

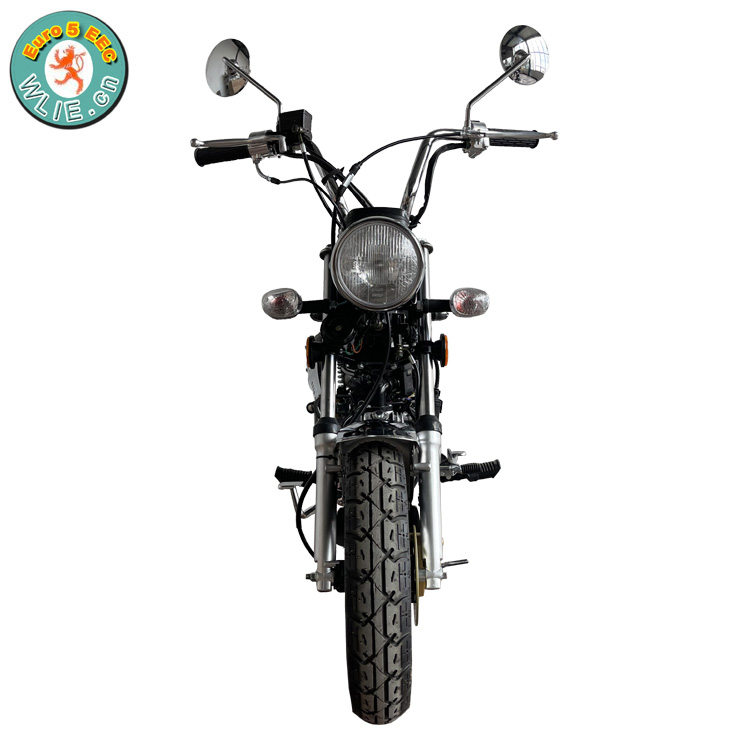

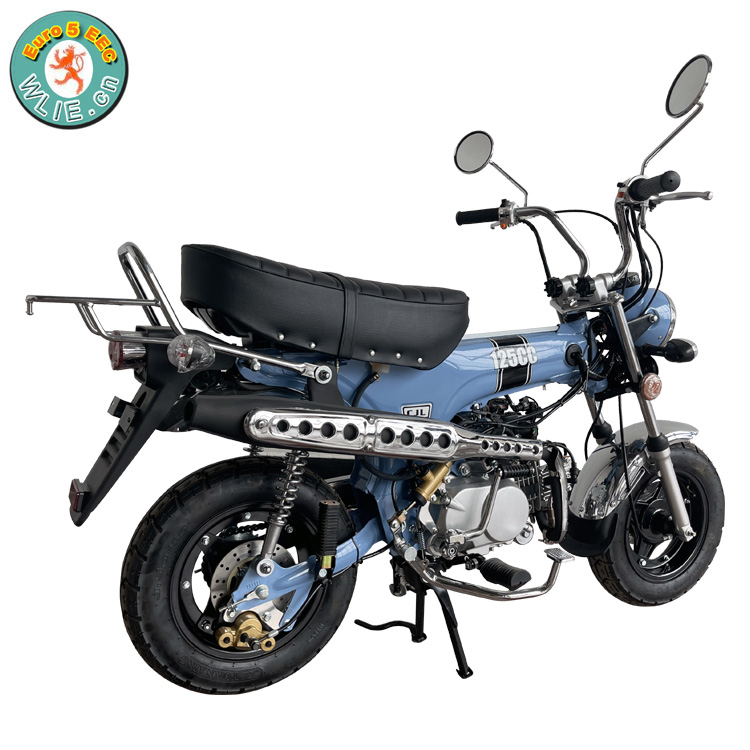

Multi-angle pictures ofthe product
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

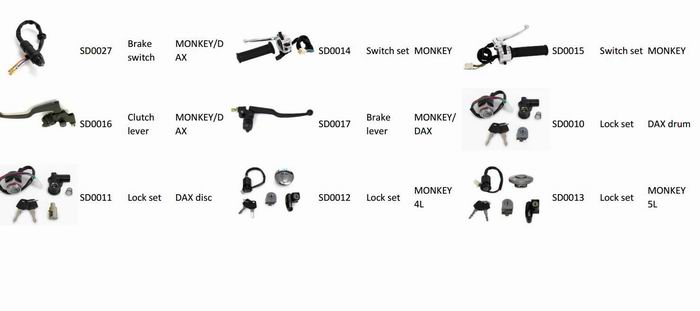

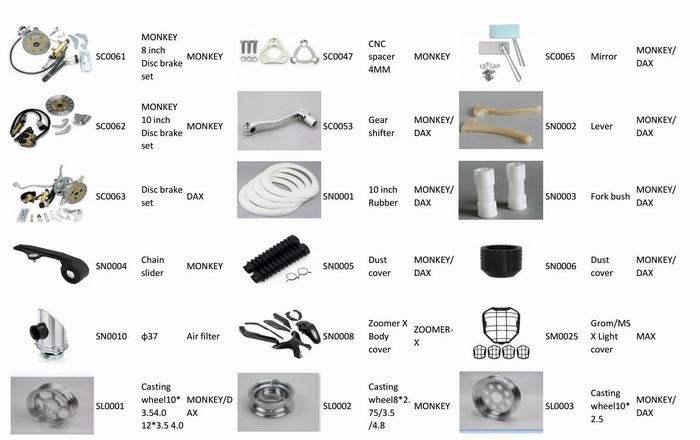

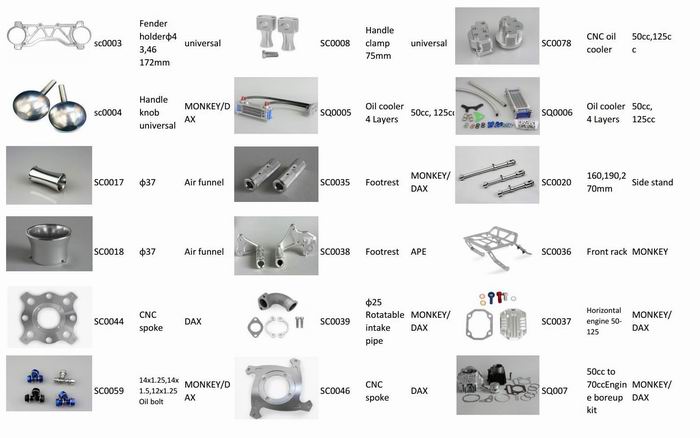

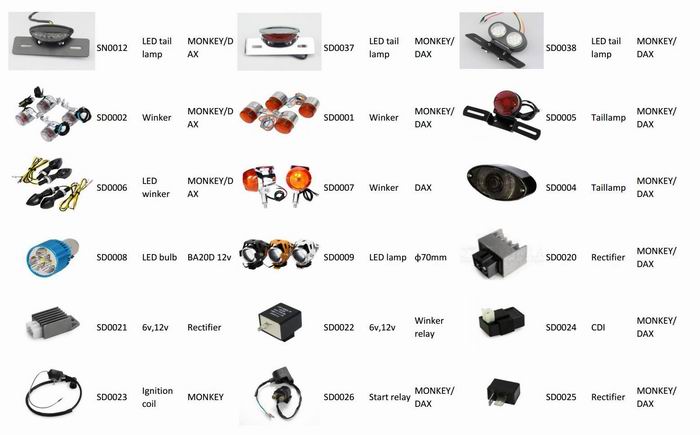

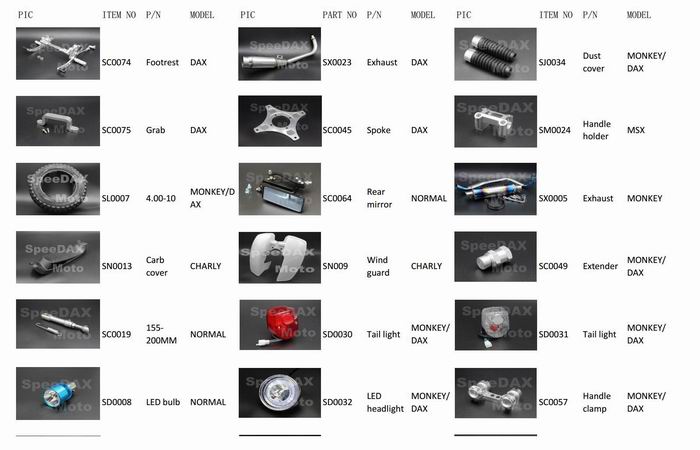

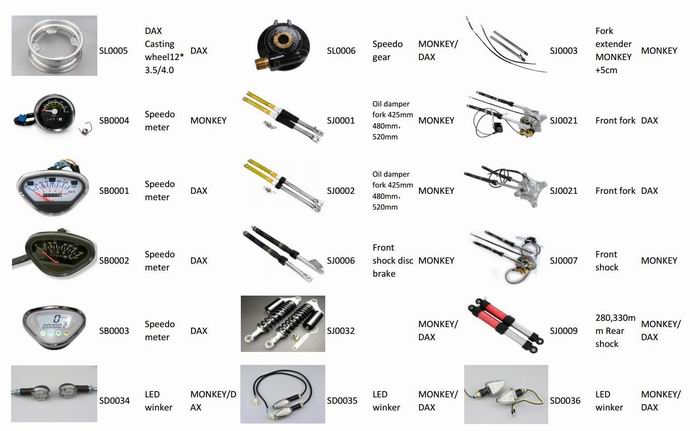

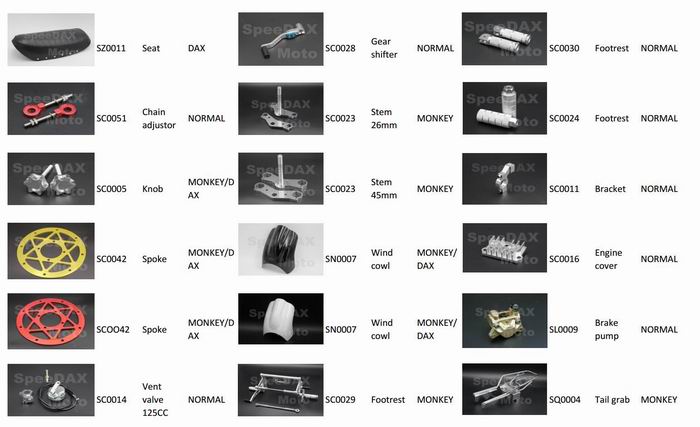

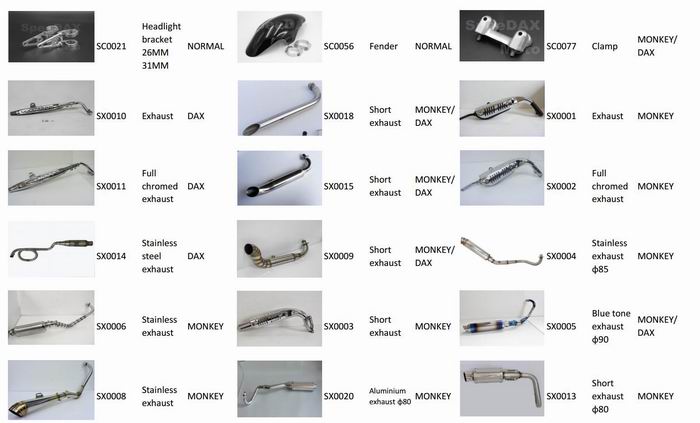

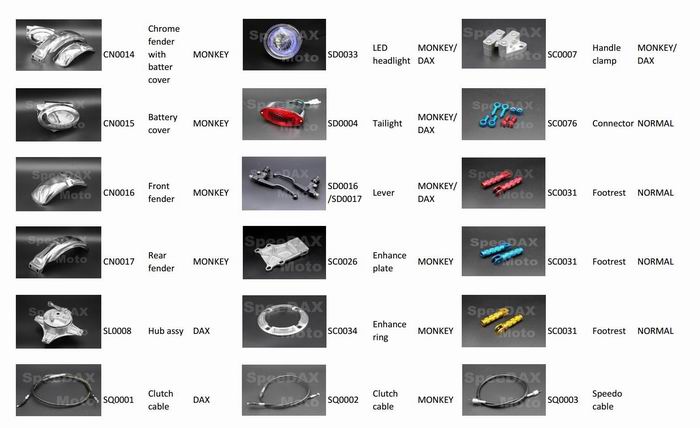

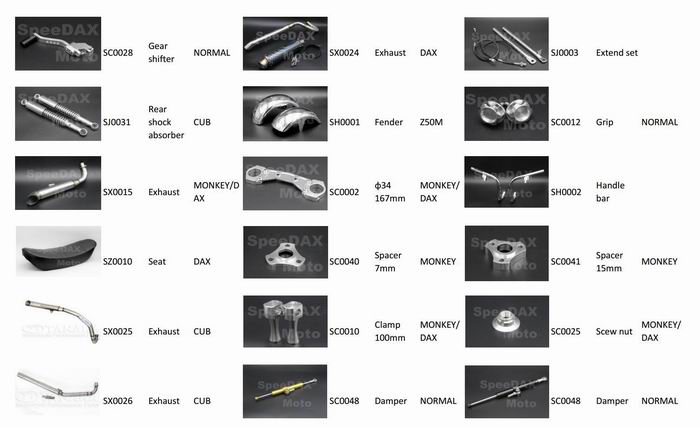

Accessories of the Product

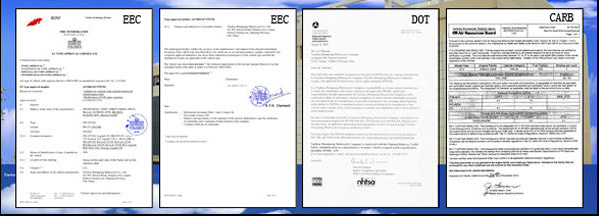

Product certificate
