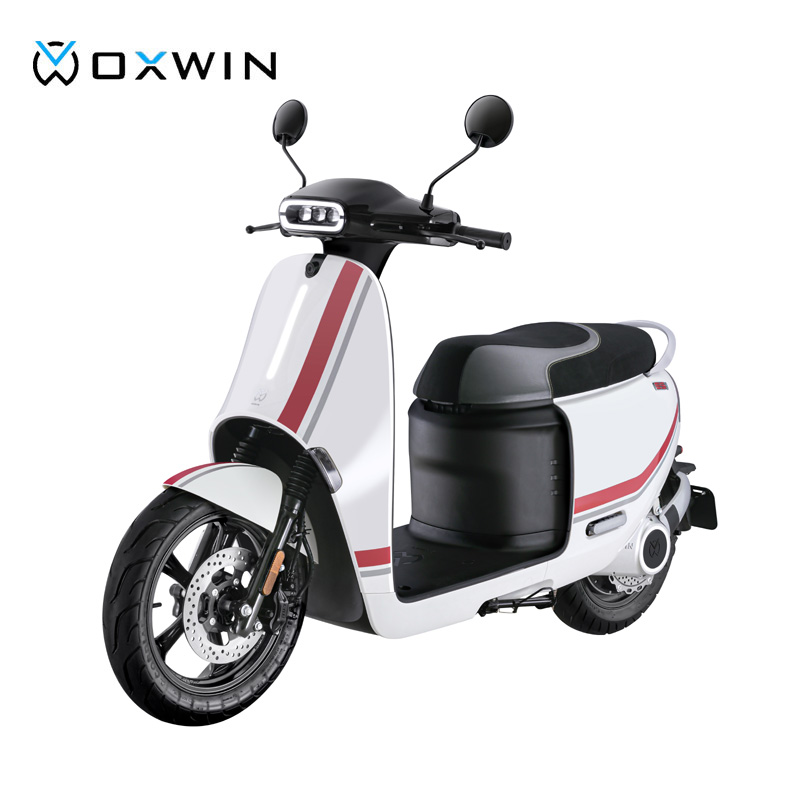

| OXWIN ES1 Inquiry |

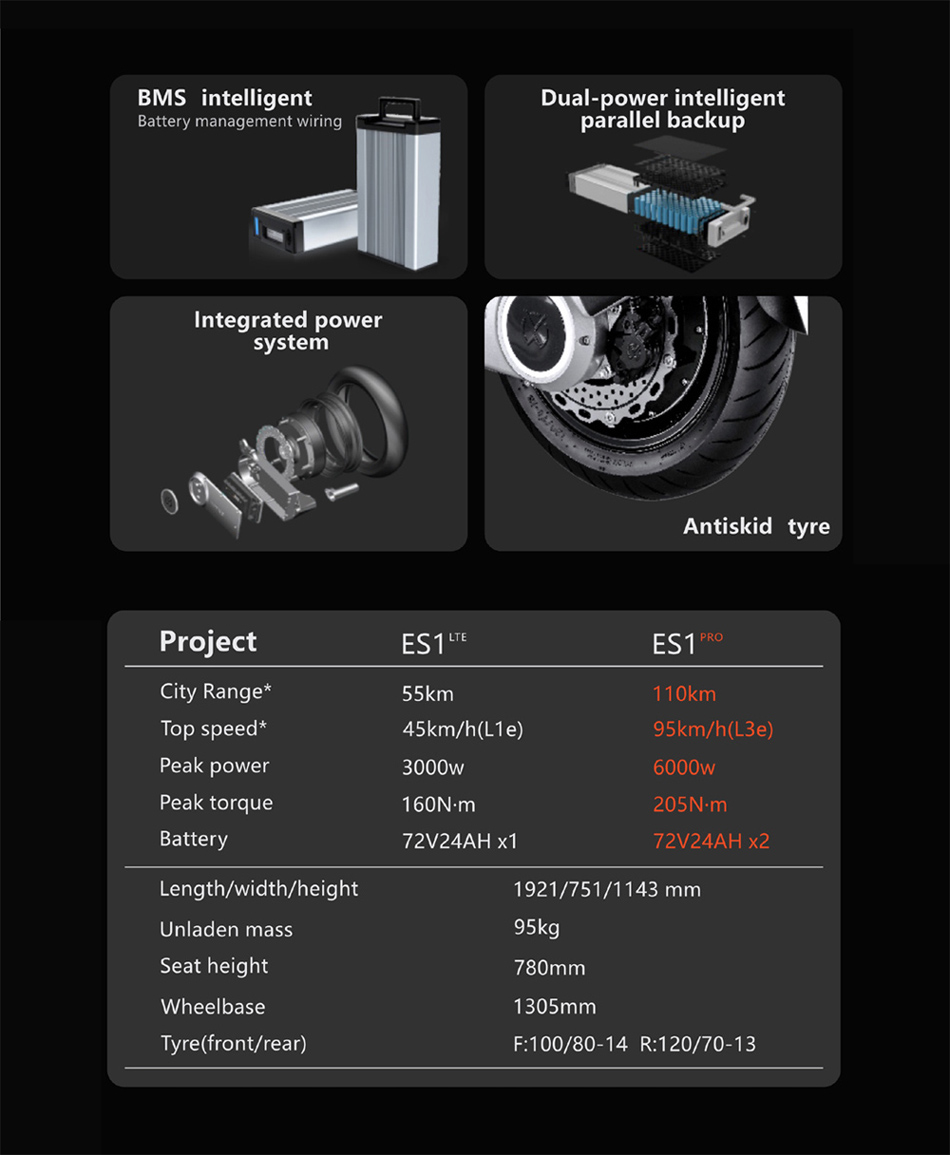

Specs
| Model | ES1 | ES1 Pro |
| Running Range | 55km(1 battery) / 110km(2 battery) | 110km(Double battery) |
| Max Speed | 45km/h (L1e) | 75km/h (L3e) |
| Motor | ||
| Type | Hub motor | |
| Rated power | 3000w | 6000w |
| Max torqure | 160N·m | 200N·m |
| Drive mode | ECO NORMAL SPORT | ECO NORMAL SPORT TUBRO |
| Battery | ||
| Capacity | 72V24AH | 72V24AH |
| Qty | 1 or 2 | 2 |
| Material | Ternary lithium battery | |
| Charging time | 3 Hour | 6 Hour |
| Chassis | ||
| Front brake | Double piston/disc brake Φ240mm | |
| Rear brake | Disc brake Φ265mm (CBS) | |
| Tyre (Fr/Rr) | 100/80-14 120/70-13 | |
| Rear arm material | aluminium alloy | |
| Front Shock | Φ31mm distance 80mm | |
| Rear Shock | Hydraulic spring shock | |
| Basic Information | ||
| L/W/H | 1921/751/1143 mm | |
| Weight | 95kg | 105kg |
| Seat Height | 780mm | |
| Turning radius | 1.90m | |
| Wheelbase | 1305mm | |
| Storage space | 3/4 Helmet | |
| Assistant | ||
| Unlocking | APP/Bluetooth/NFC | |
OXWIN self-developed high-power in-wheel motor with
self-developed FOC3.0 vector controller
Give full play to efficient and stable power output, precise traction control

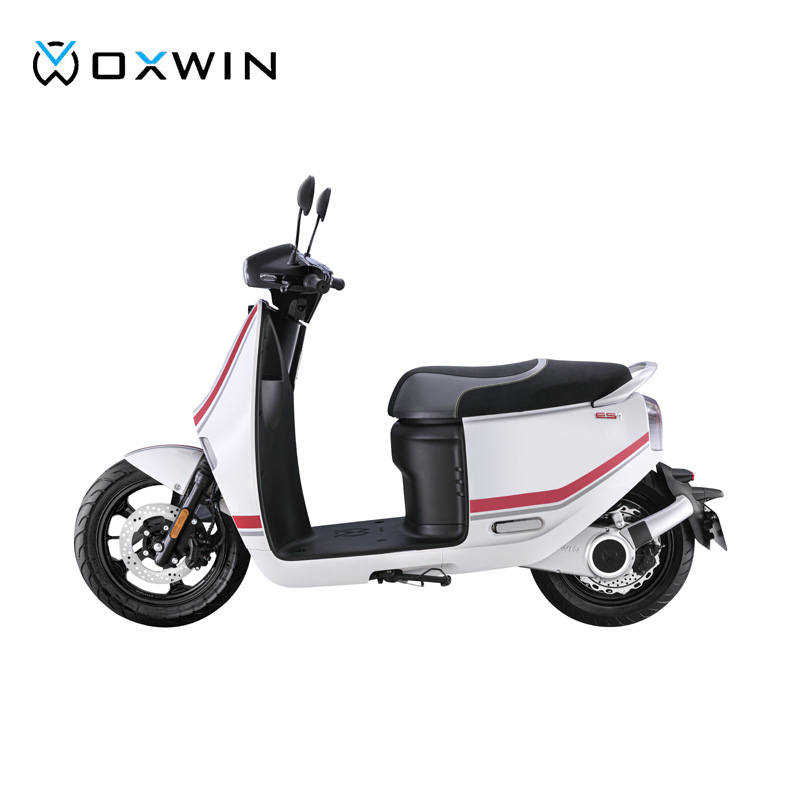

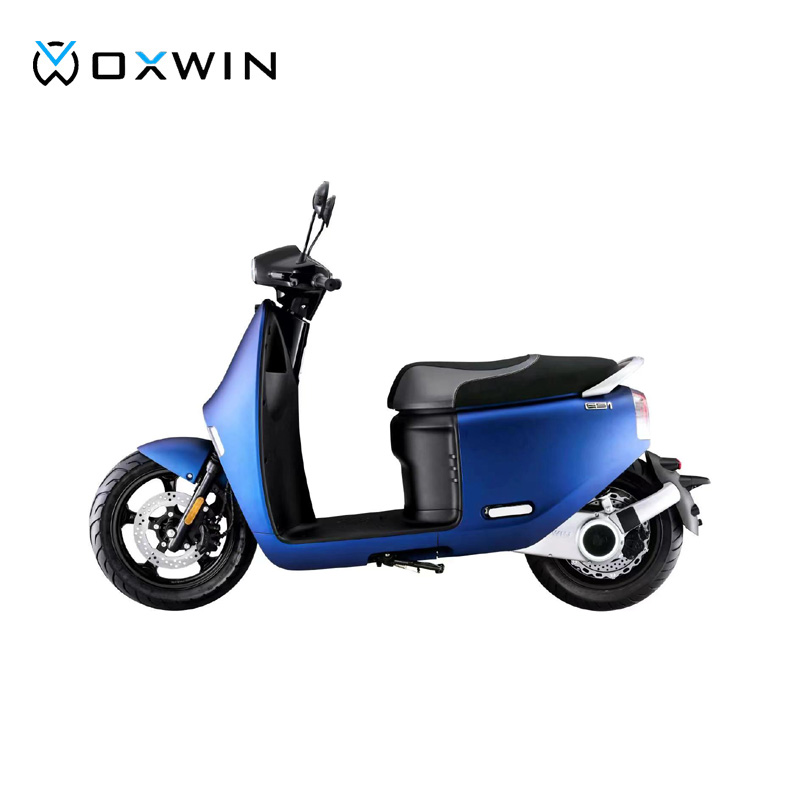

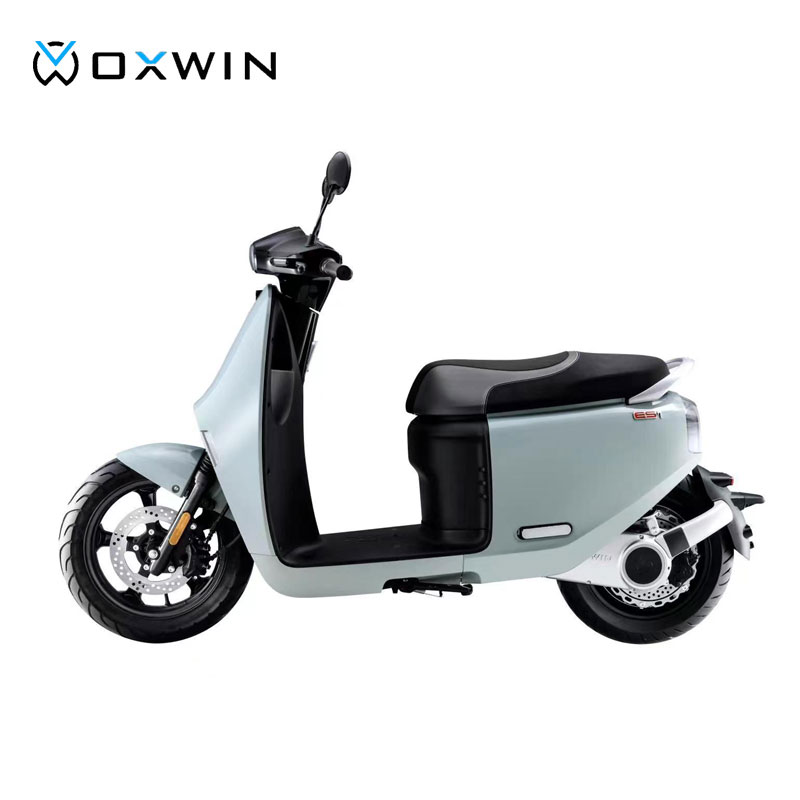

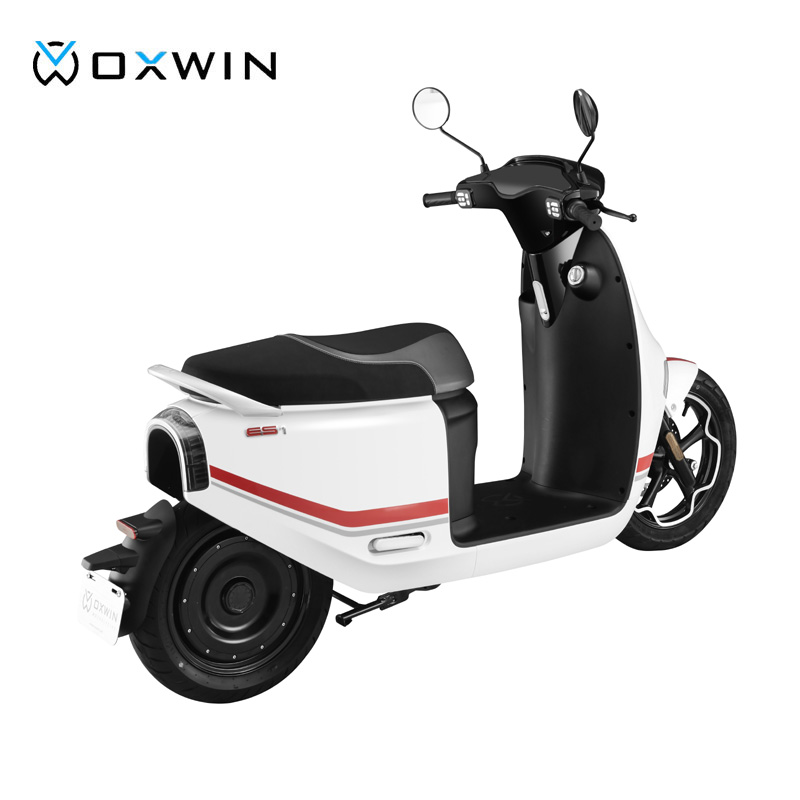

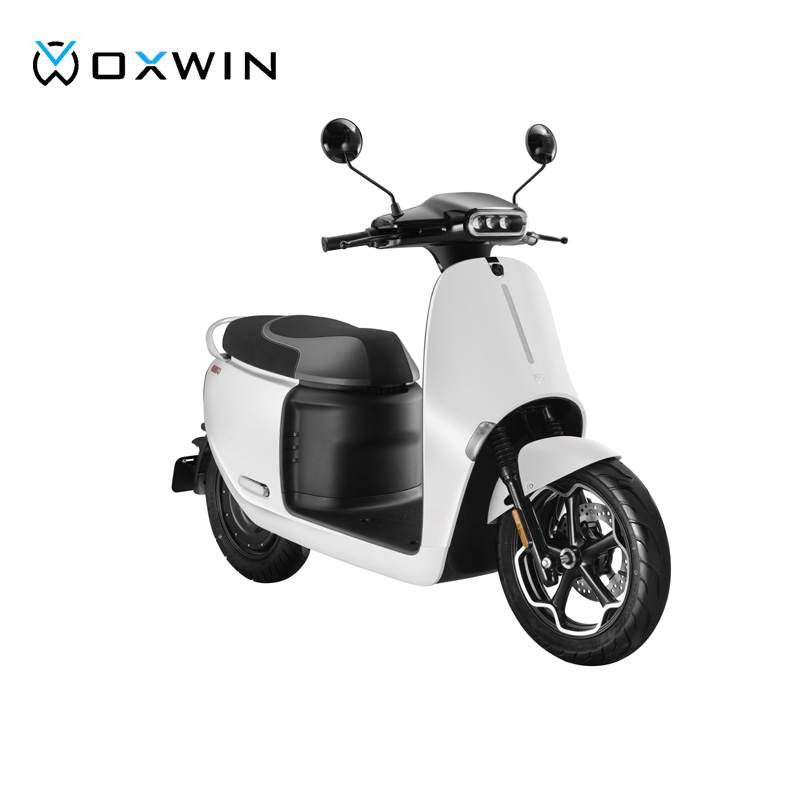

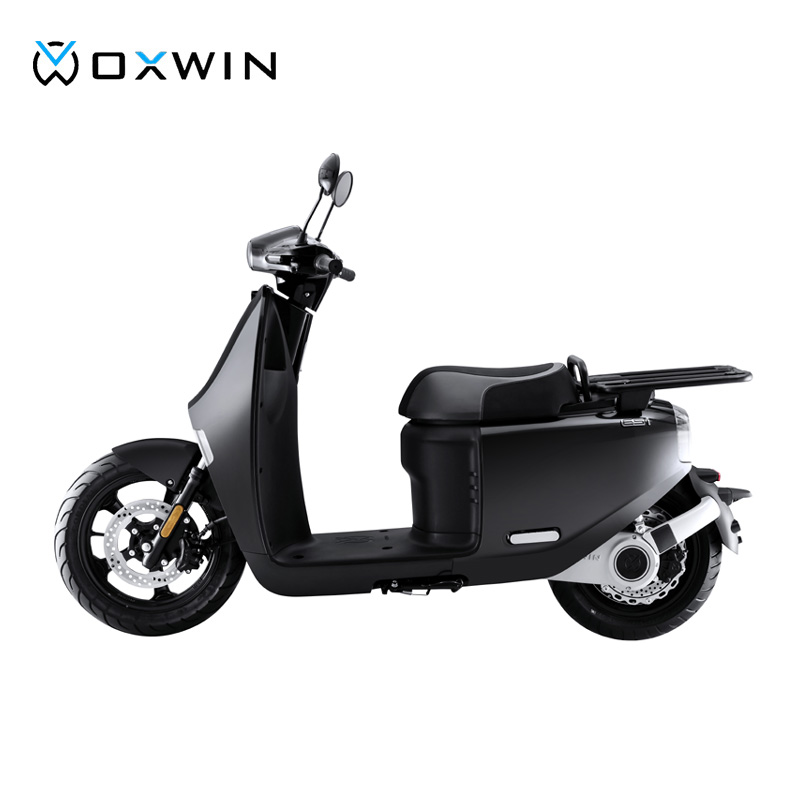

Different colors
 |
 |
 |
 |
 |

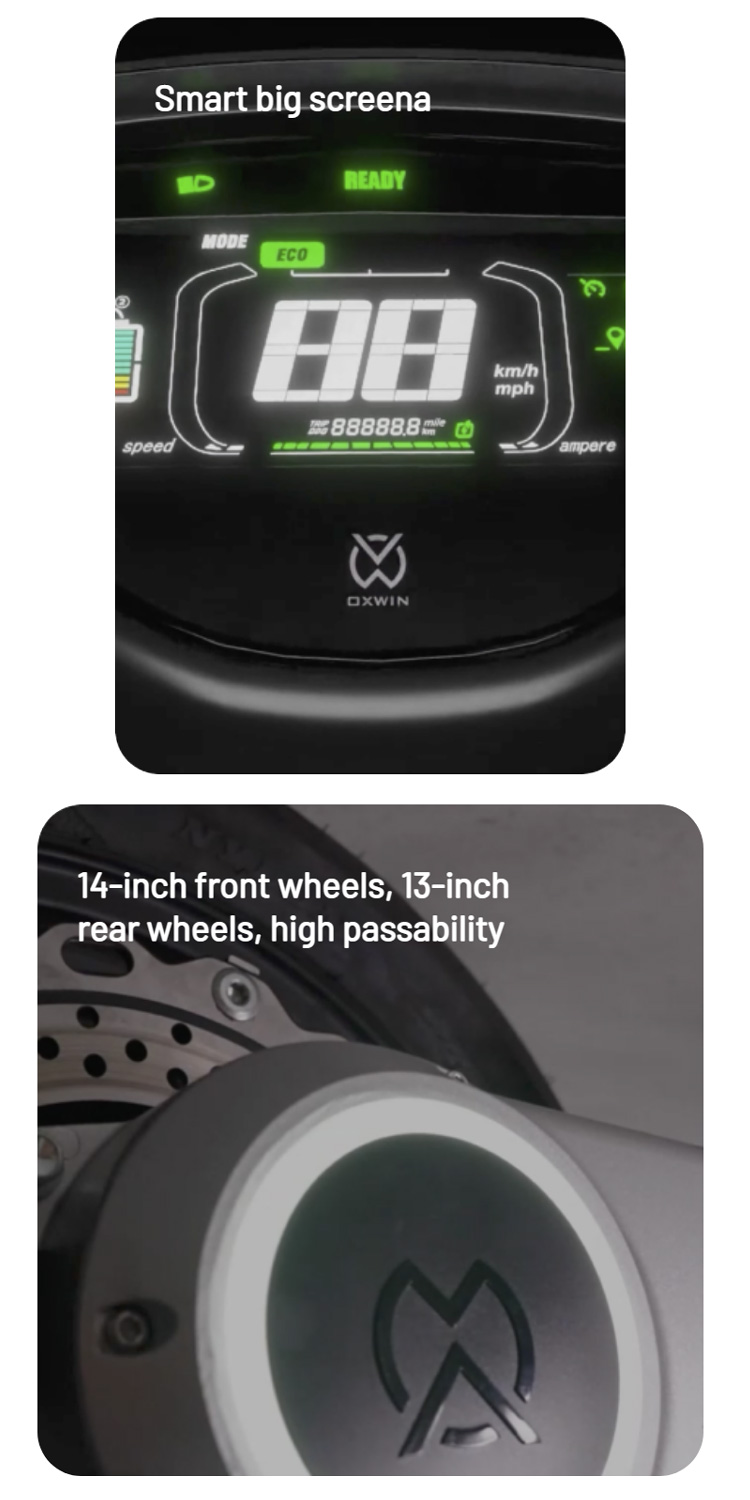

Key-card and Speedometer:

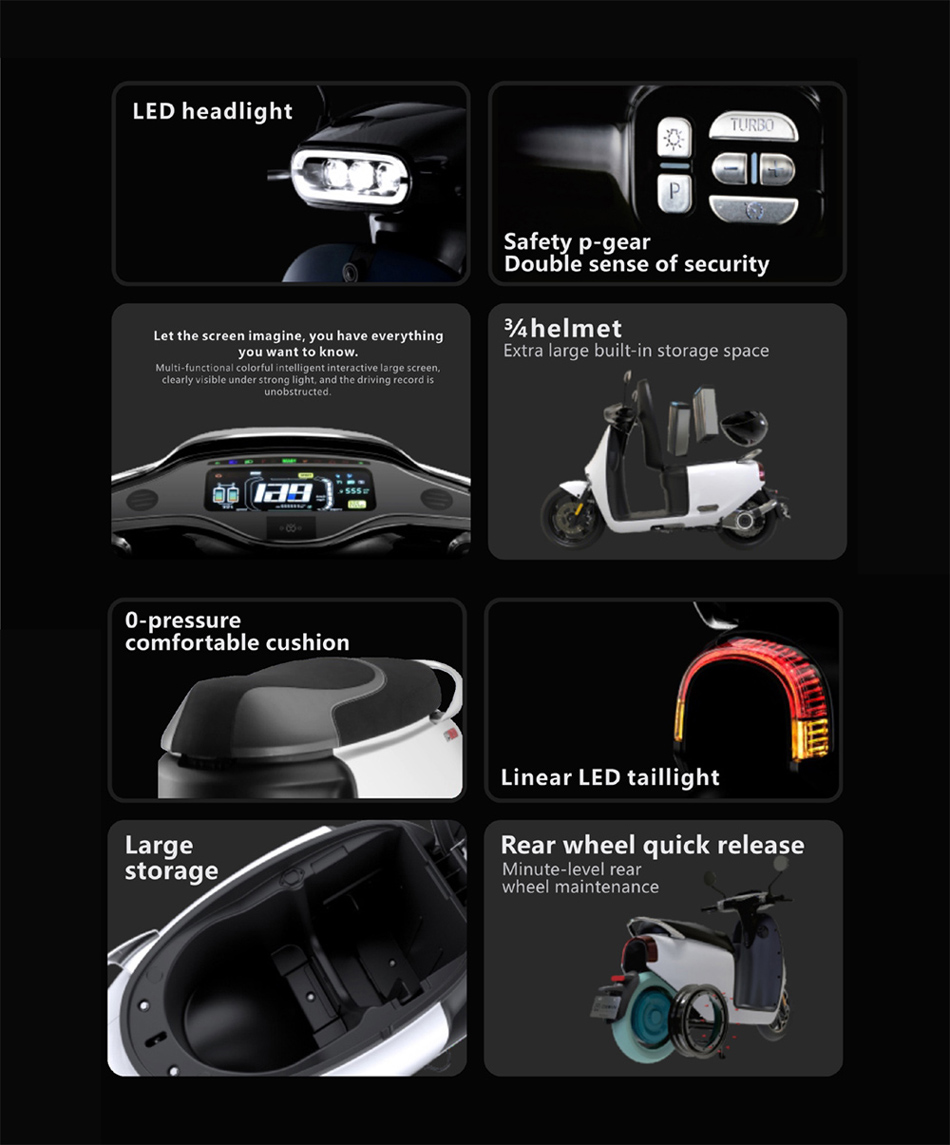

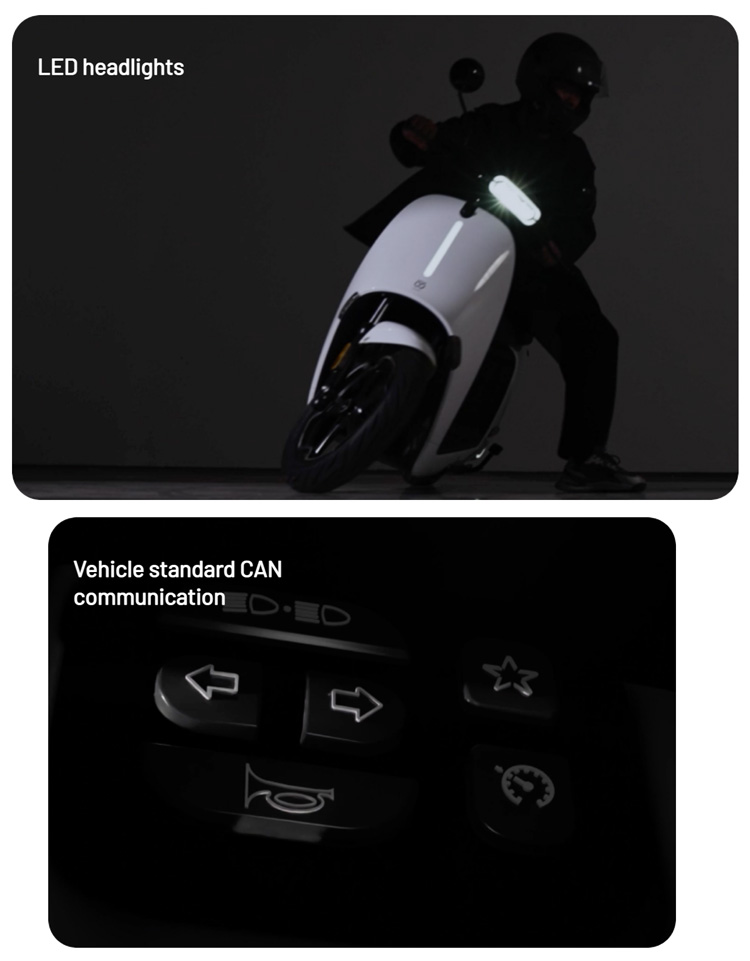

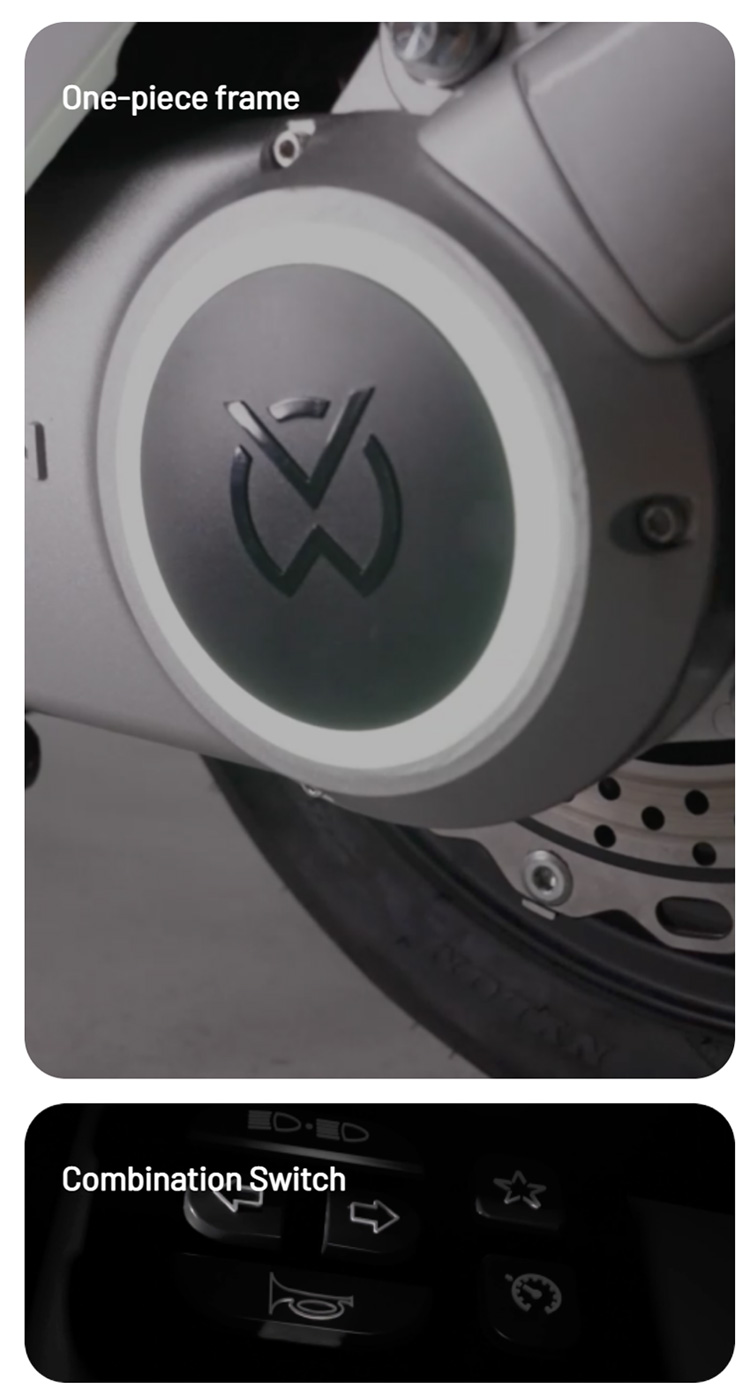

Detail information
 |
 |
 |
 |
 |

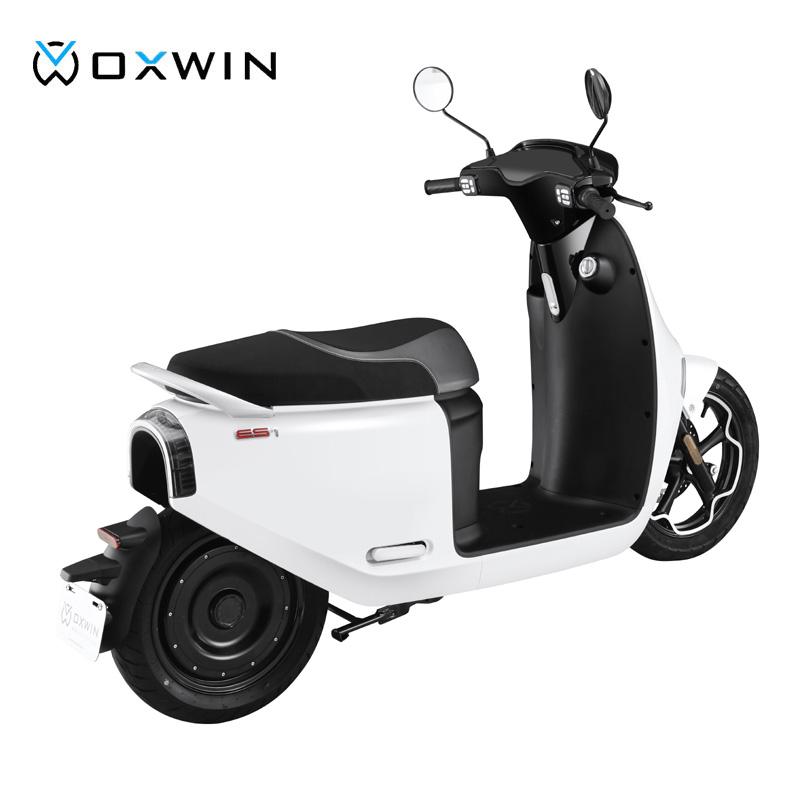

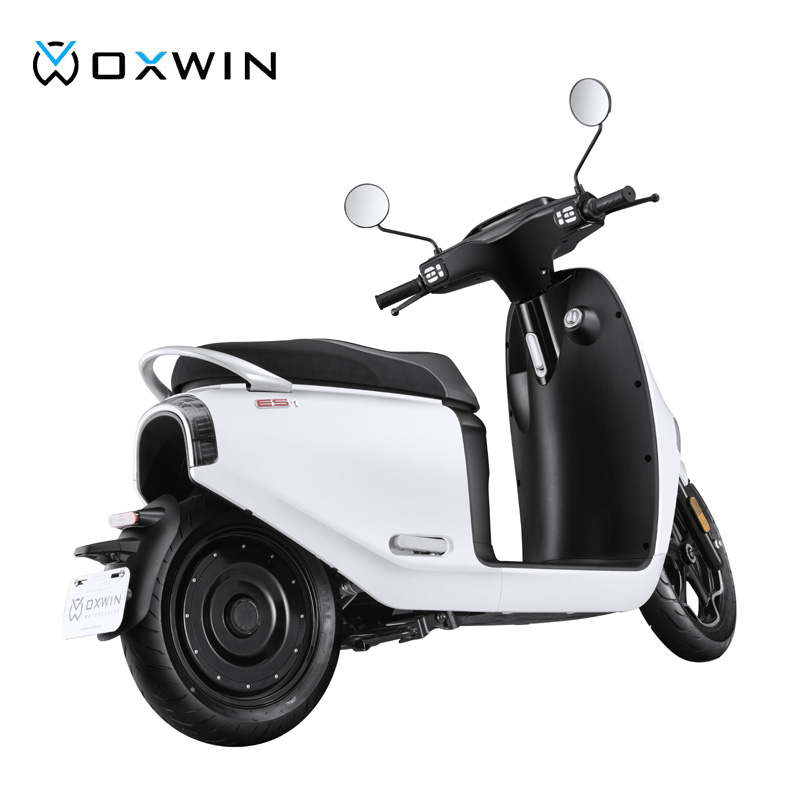

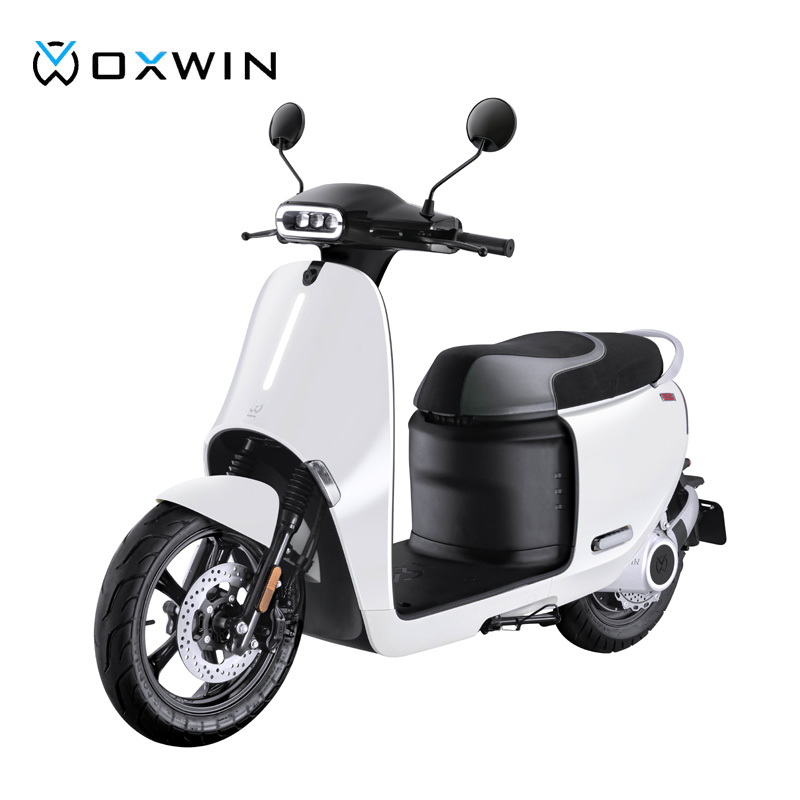

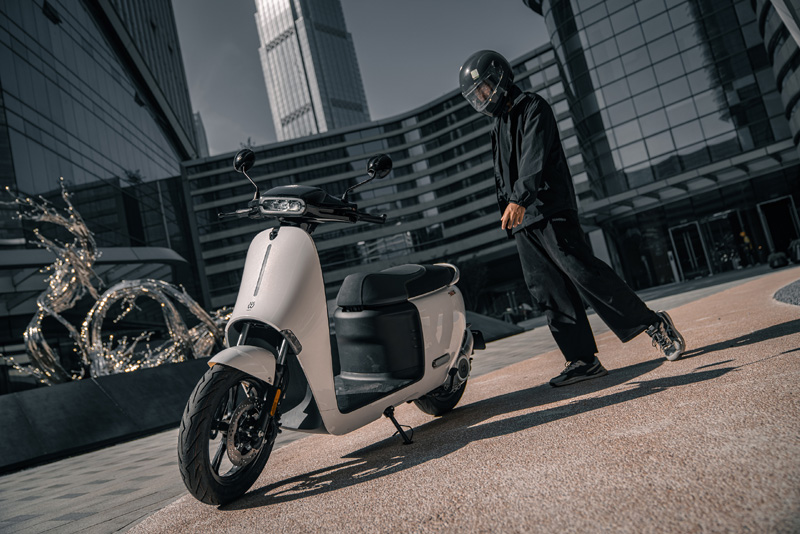

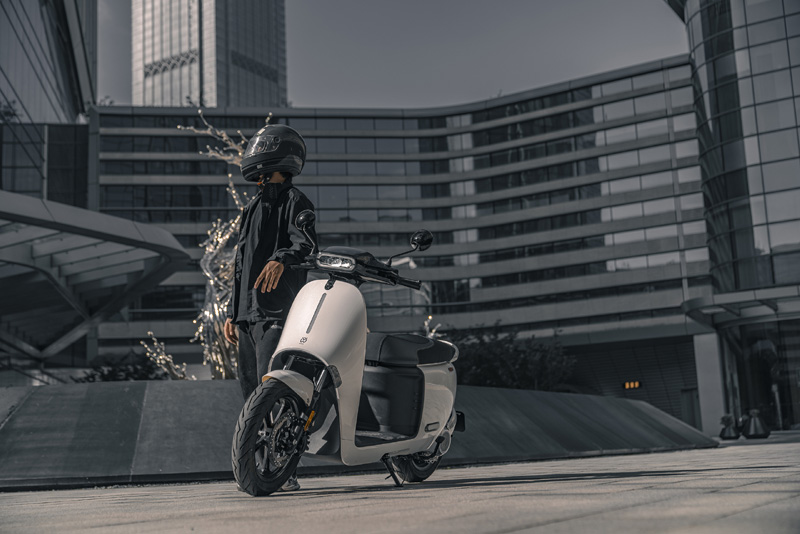

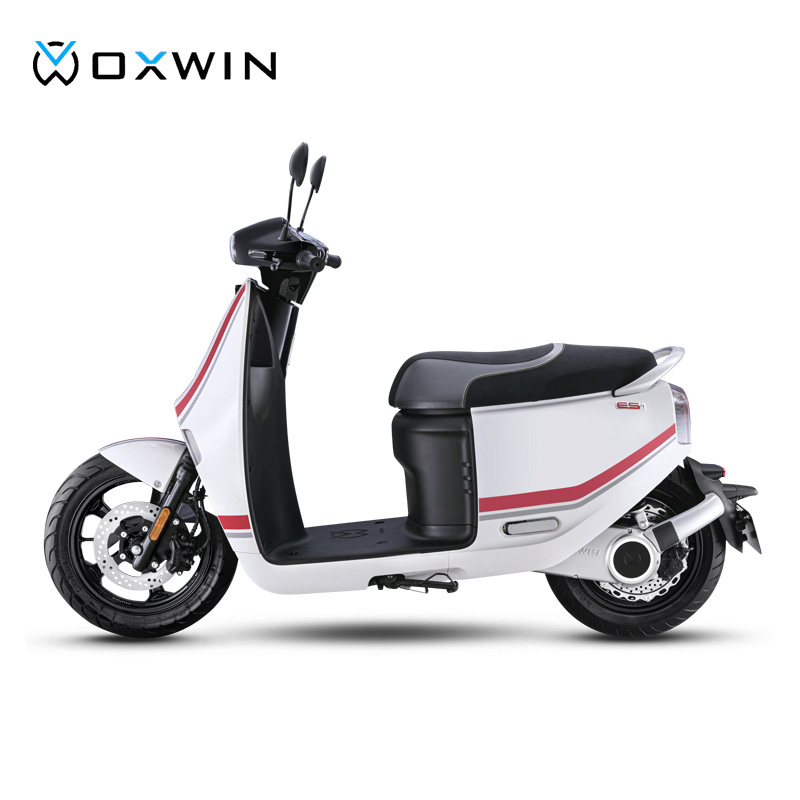

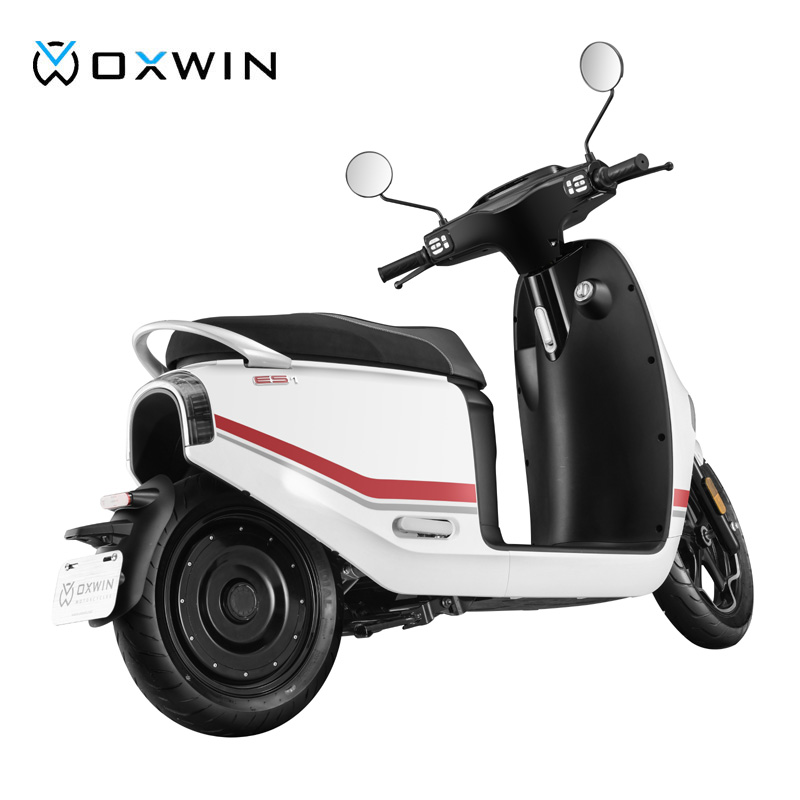

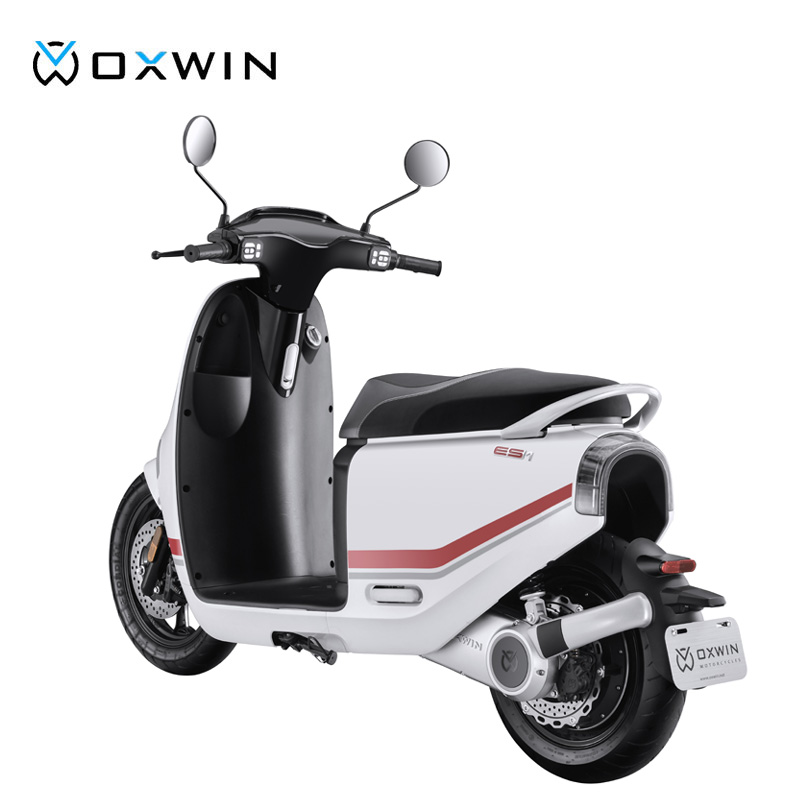

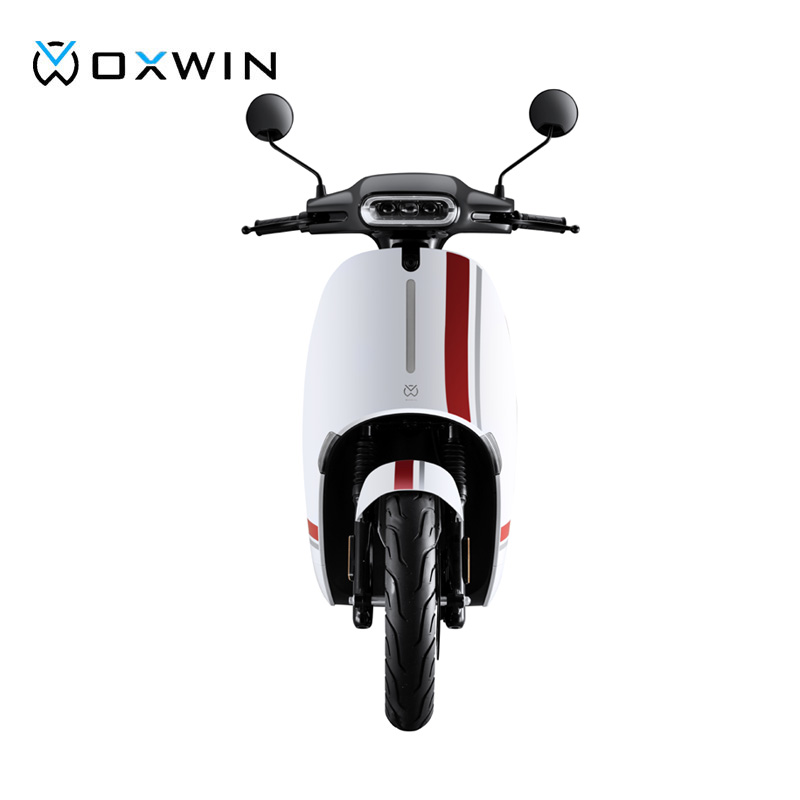

More Pics
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |

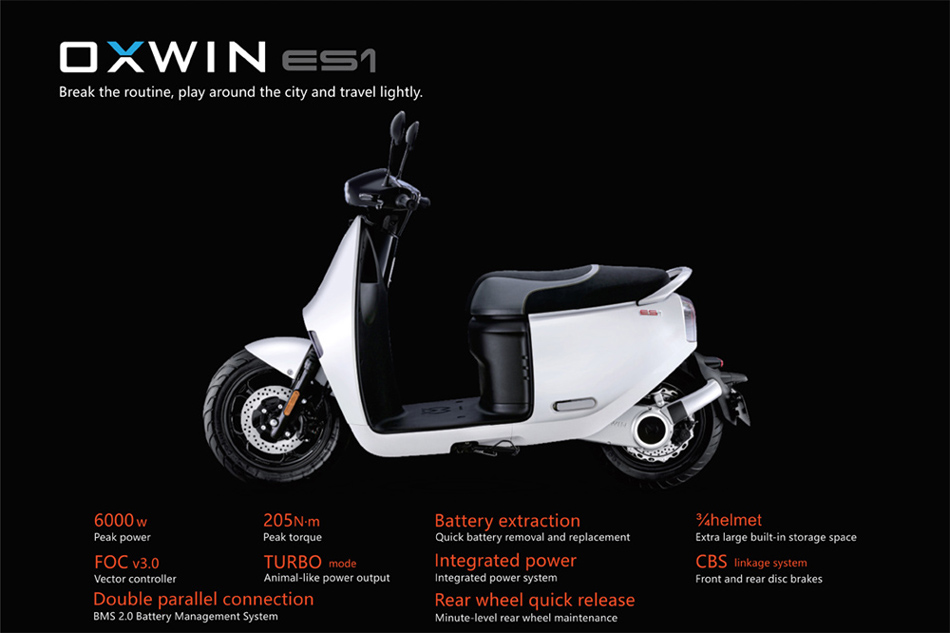

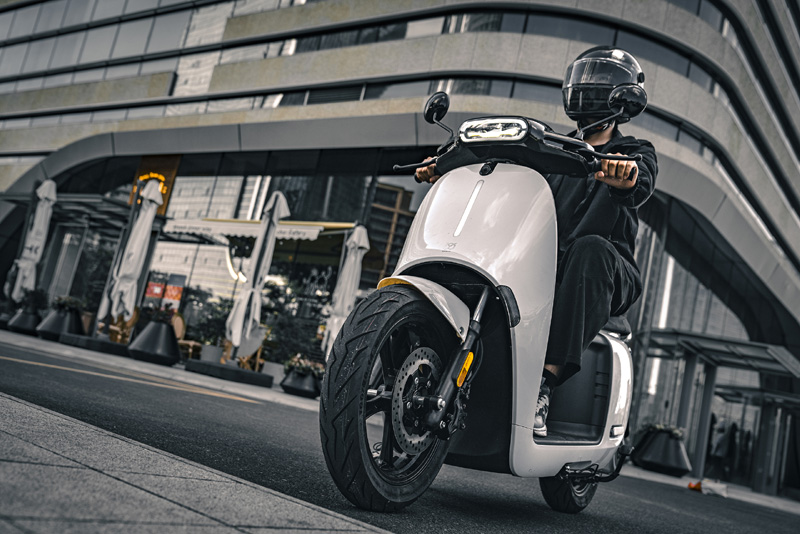

Ad Pics
 |
 |
 |
 |
