PRODUCT

ATV-049M Inquiry
specitification

Item No
ATV-049M

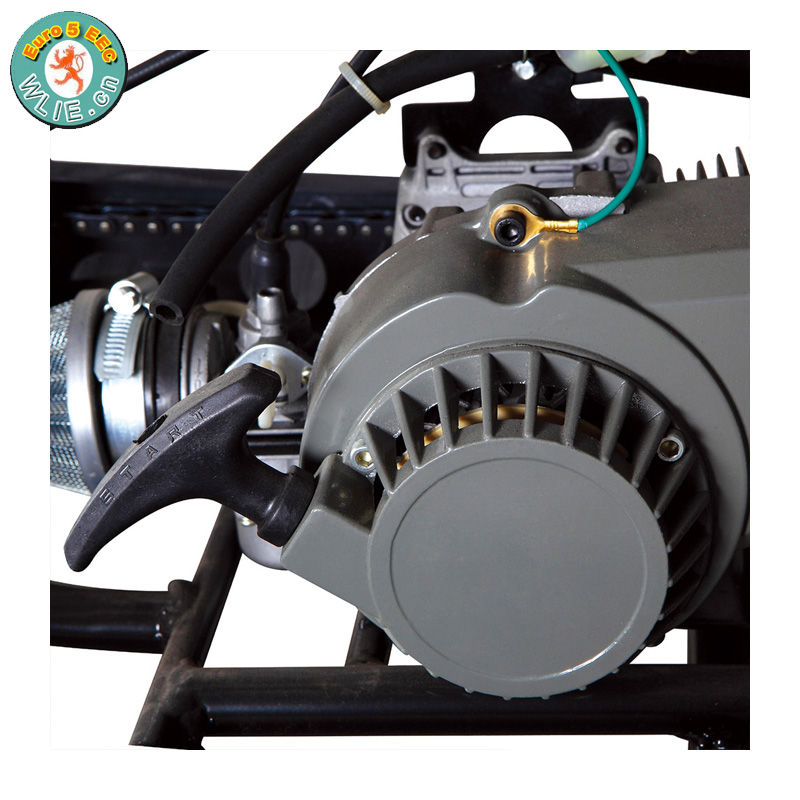

Engine49cc two strok, single -cylinder, Air cooled
Bore & Stroke44*33mm
StartingPull start
DriveChian Drive
TransmissionAutomatic, Single Forward

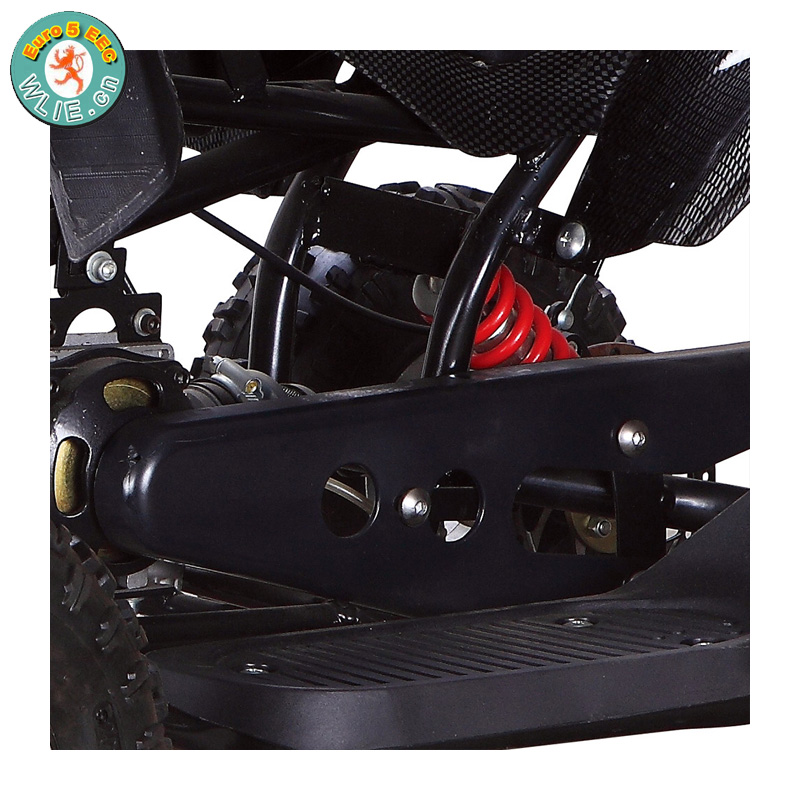

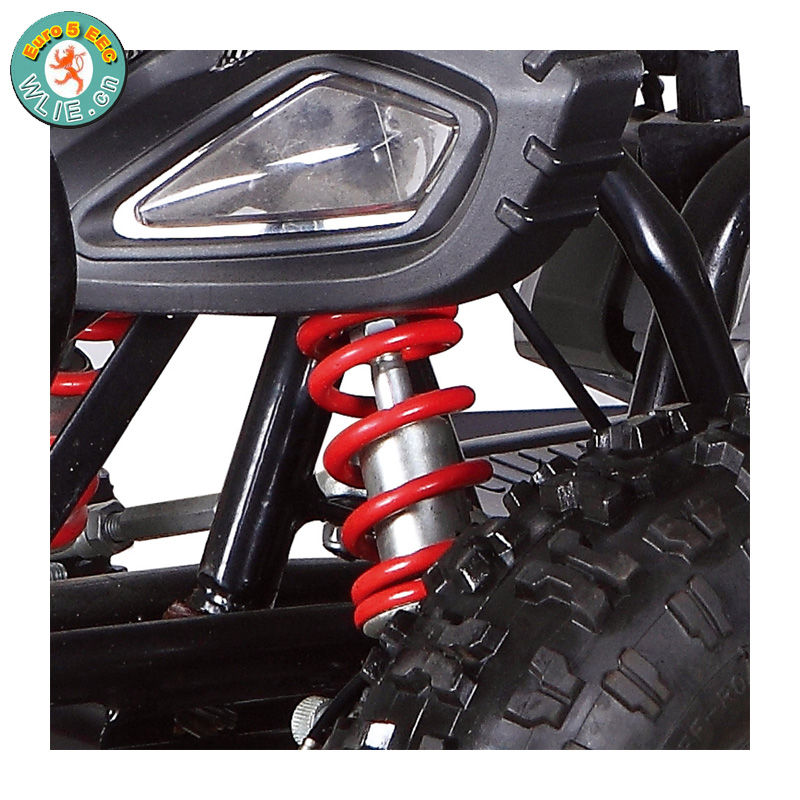

SuspensionDual shock absorber. Single shock absorber

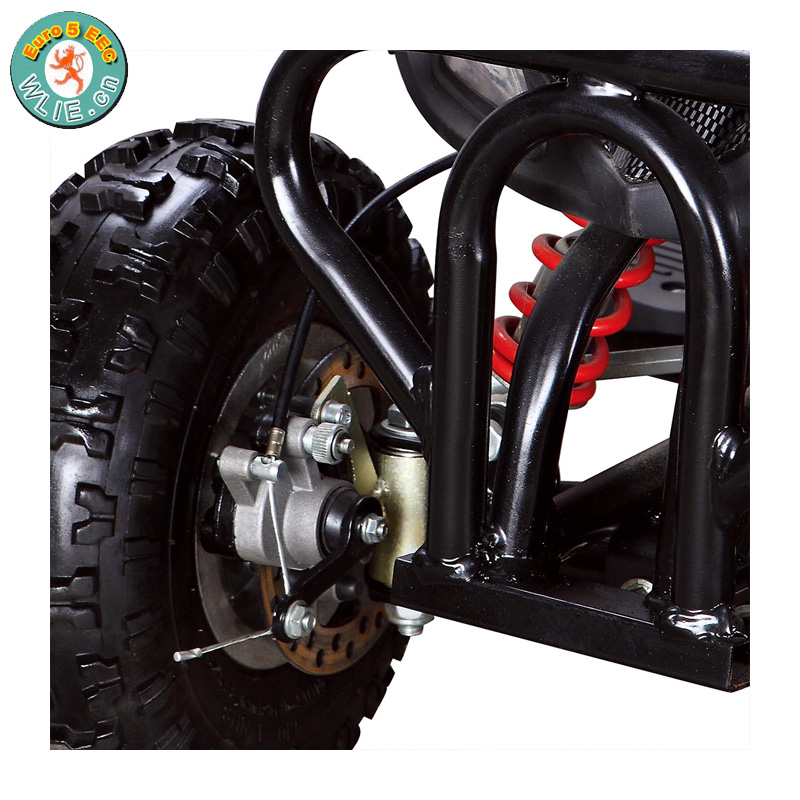

BrakeDual Disc brake, Single Disc Brake
Tyre4.10-4;4.10-4 (4 inch)
Fuel Tank0.9 L Plastic Tank
Seat Height49cm
Wheelbase69cm
Ground Clearance8.5cm
Max. Loading50kgs
Max. Speed25km/h
Product Size100*69*72cm
Packing Size101*58*53cm
G.W./N.W.36/32kgs
Brake Distance≤ 5m at 20 Km/h
Container Loading88 Pieces/20”FT, 230 Pieces/40”HQ

Selling Points of the product

The 49cc two stroke ATV,

it’s 49cc two stroke, single cylinder, air-cooled.

The 49cc ATV drive is chain with chain tension and protector.
