Maple 125 (Euro 5) Inquiry
Maple 125 (Euro4)

With EFI system, Euro 5 EEC Homologated

 Displacement(ml) 124.6
 Engine NO. 152QMB
 Motorcycle body material ABS, PP
 Max speed(km/h) 80
 Fuel tank capacity(L) 5.5
 Tyre size 3.50-10
 Brake Mode Disc/drum
 Dimensions (length*width*height) (mm) 1820*685*1135
 Engine type single cylinder,4 stroke
 Cylinder diameter(mm) 52.4
 Piston stroke 57.8
 Battery type  12V7A
 Max power and rotate speed  6.0kw(3.00HP)/7500r/min
 Max torque and rotate speed 8.4N.m/6500r/min
 Minimum ground clearance(mm) 95
 Compression ratio 9.2:1
 Unladen mas(kg) 93
 Load capacity(kg) 150
 Economic oil consumption ≤2.8
 Climbing capacity Angle: 17 degrees
 Minimum turning radius(mm) 1305


Selling Points of the product:

1,It can match multicolor and stickers.

2,We can do 125CC power, also do we can do 50CC and 150CC models.

3,Front and rear vacuum tire :durable,fasten, balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.

4,Disc brake has high safety performance and has no noise.

5,The motorcycle can install rear box and rear carrier.

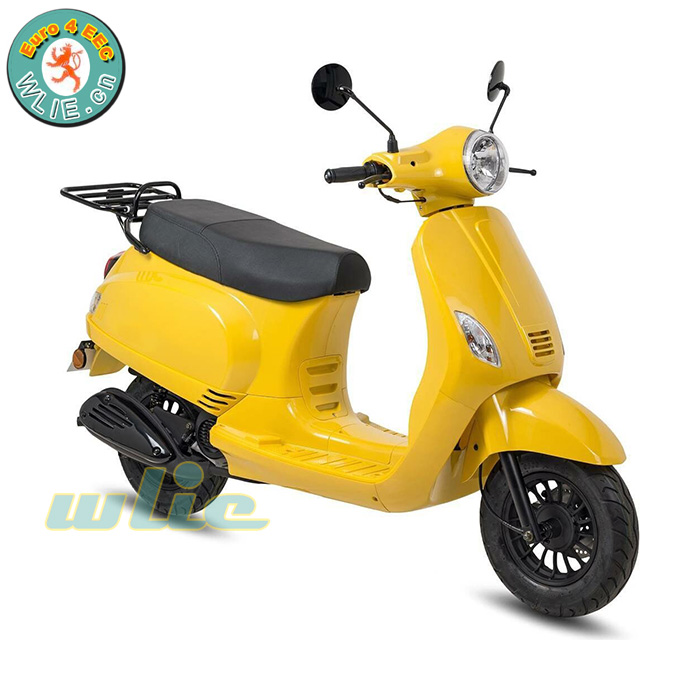

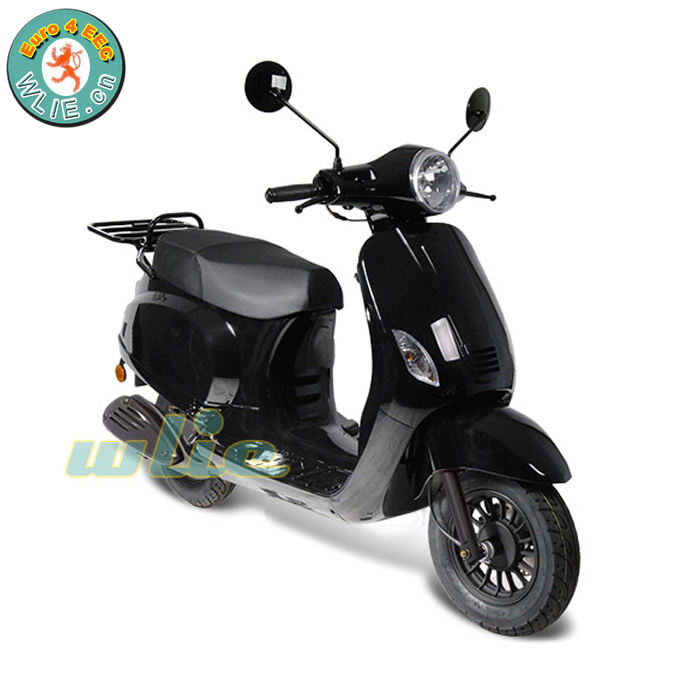

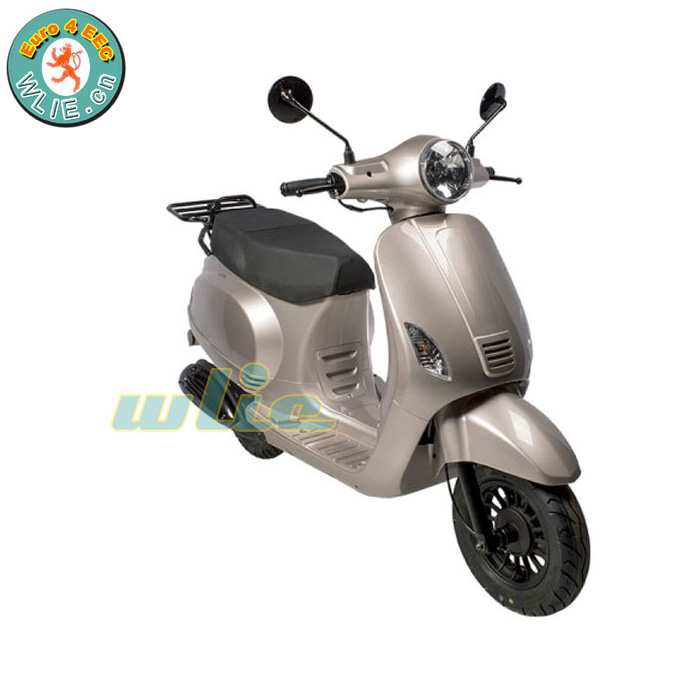

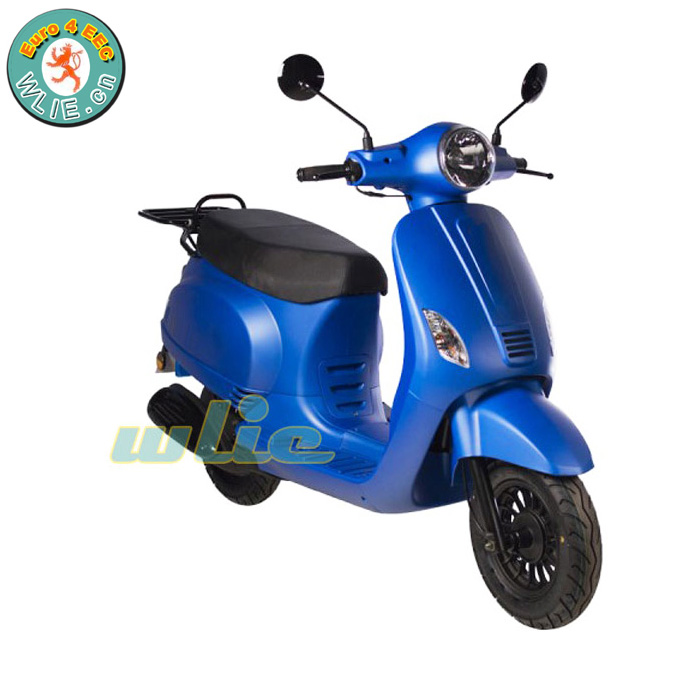

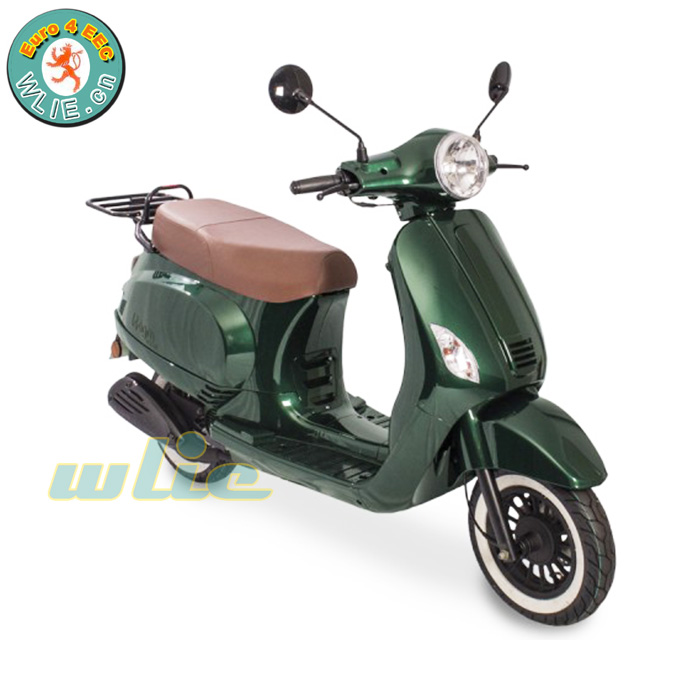

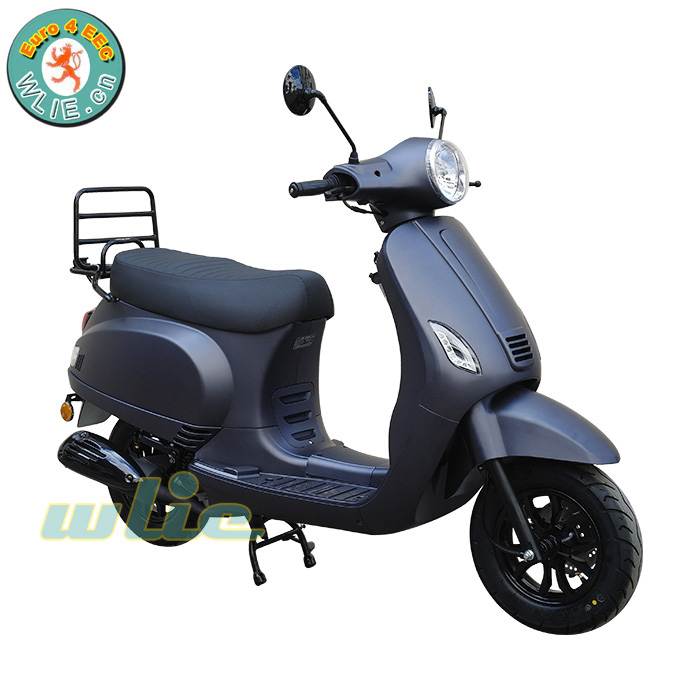

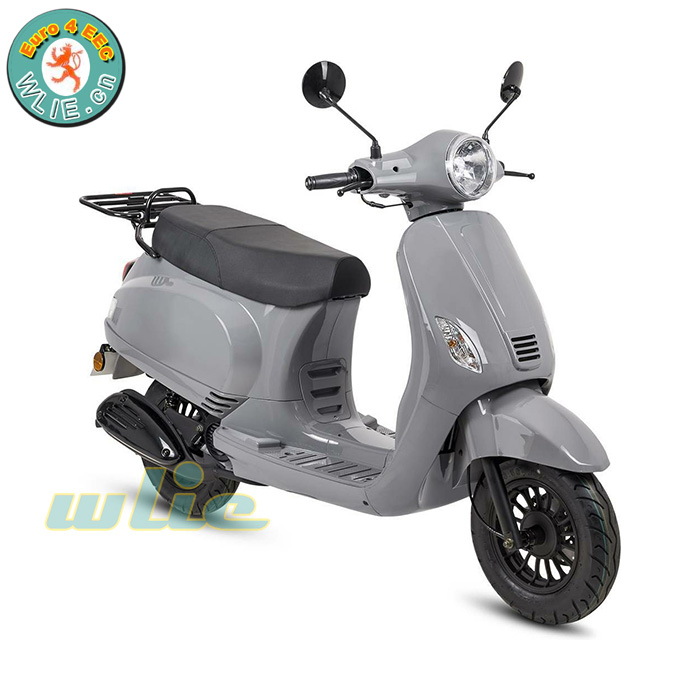

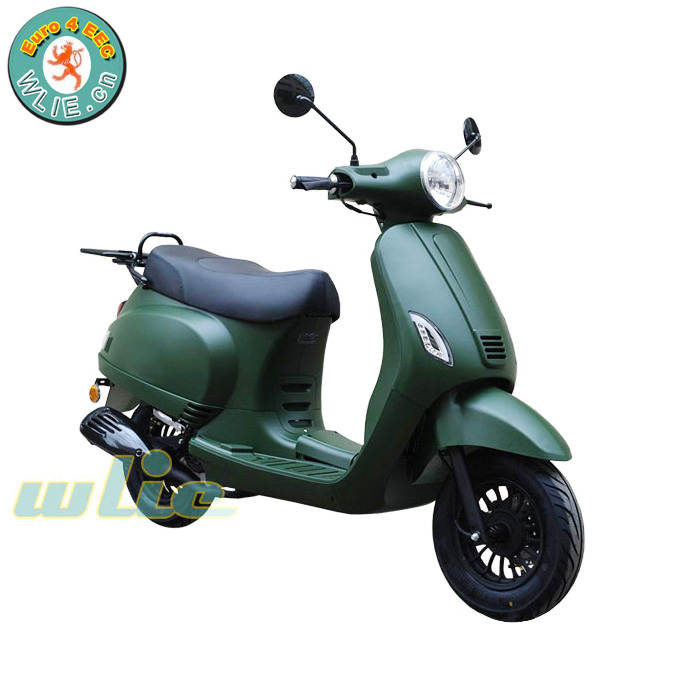

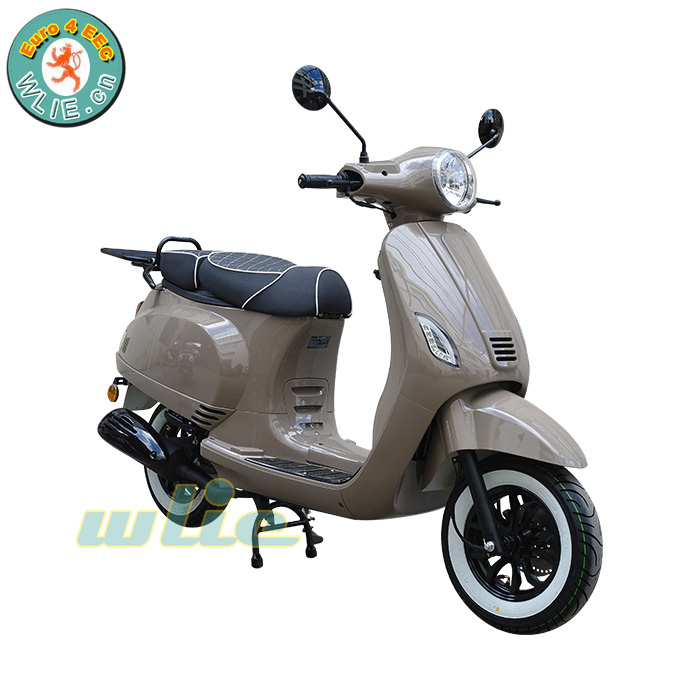

Color sample of the product

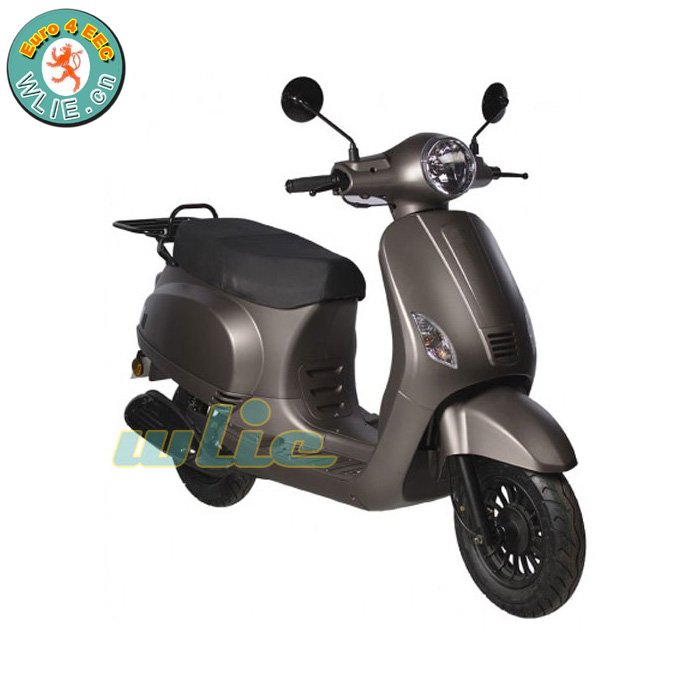

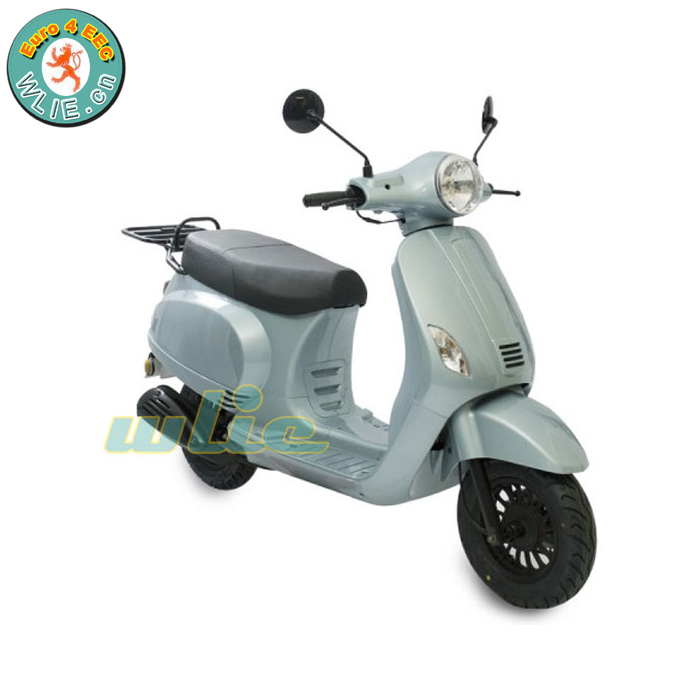

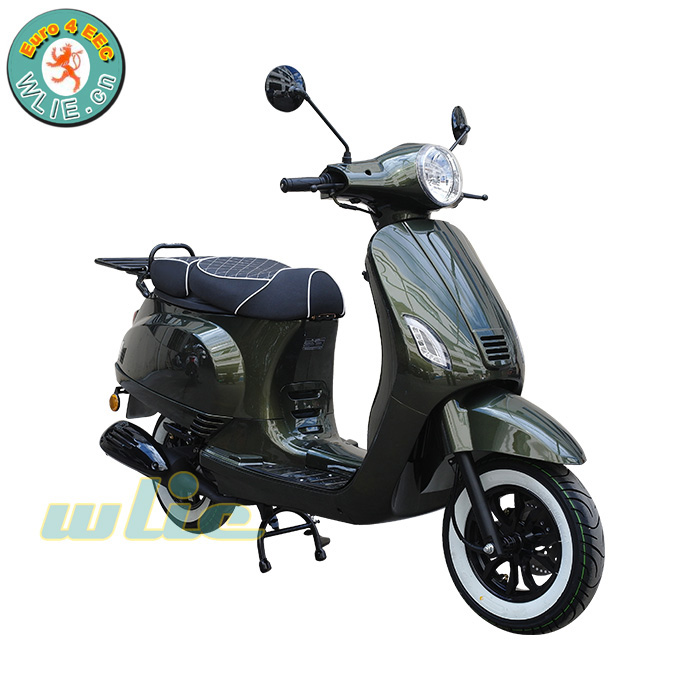

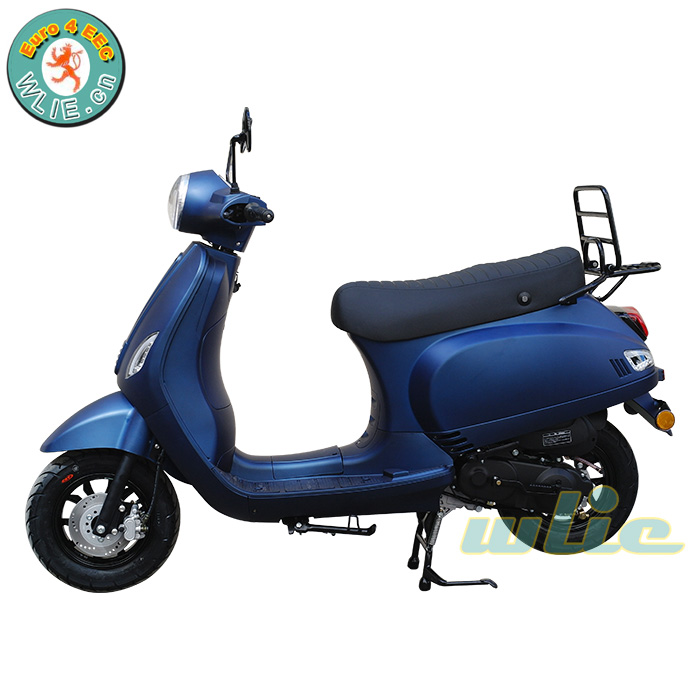

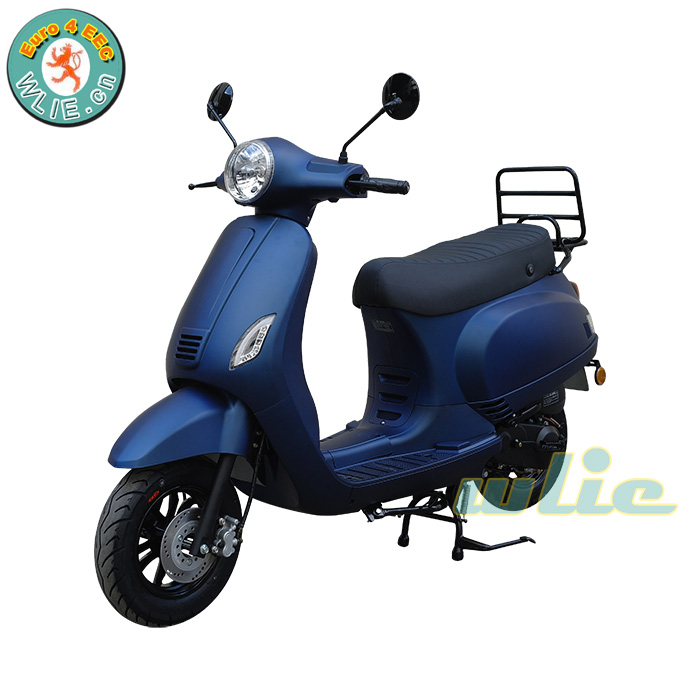

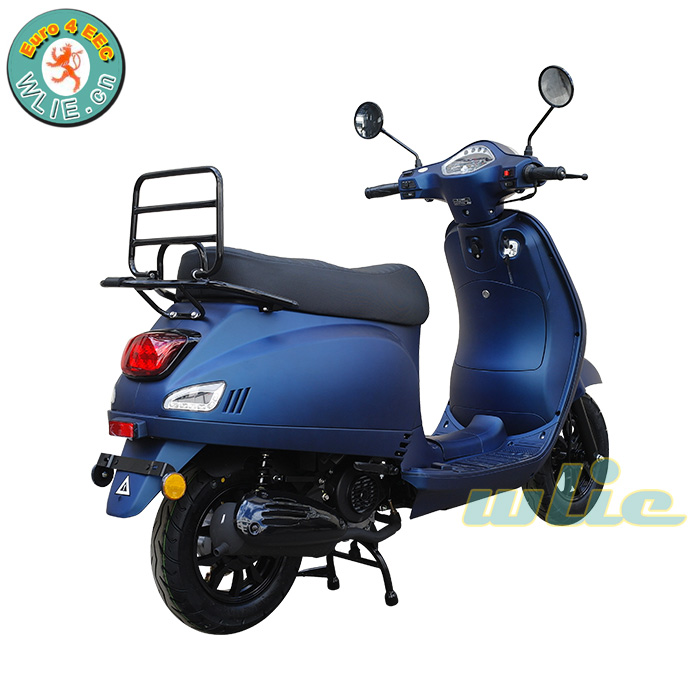

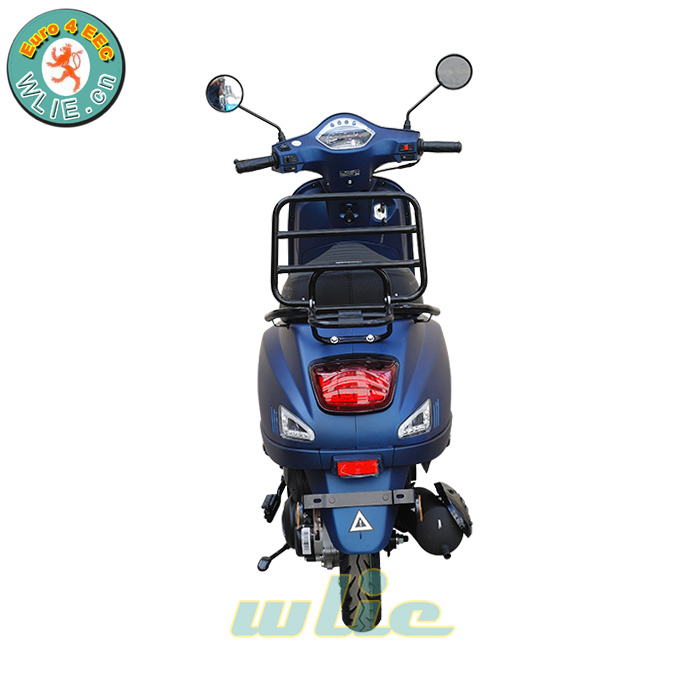

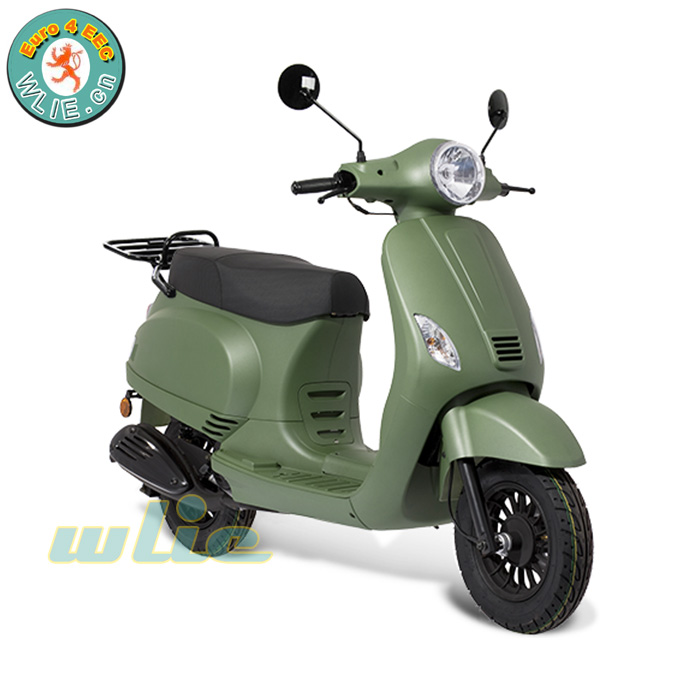

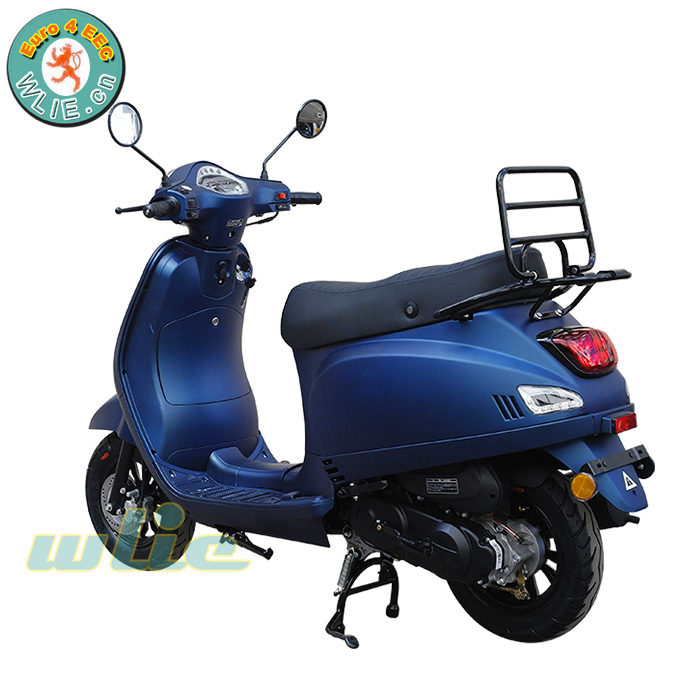

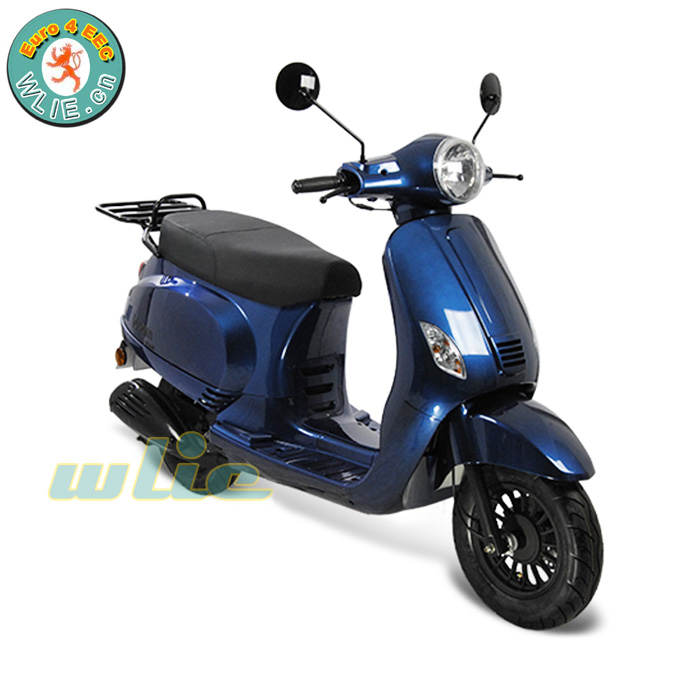

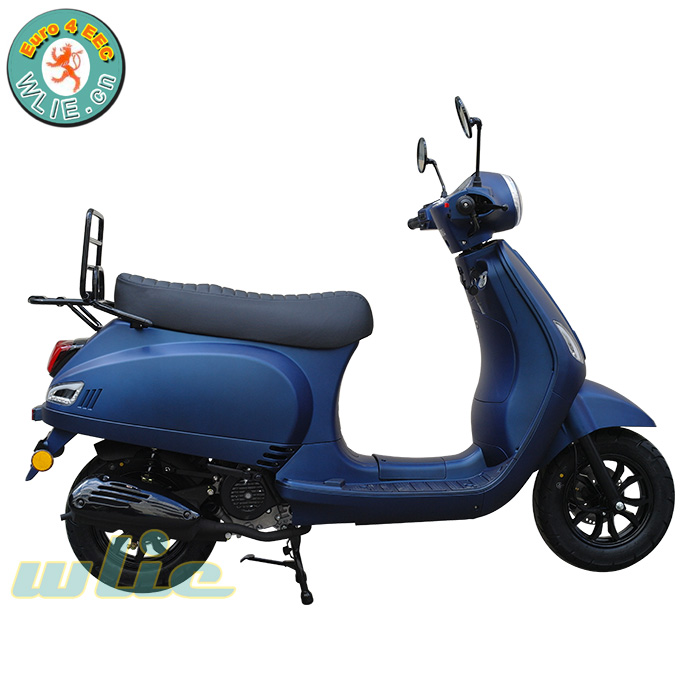

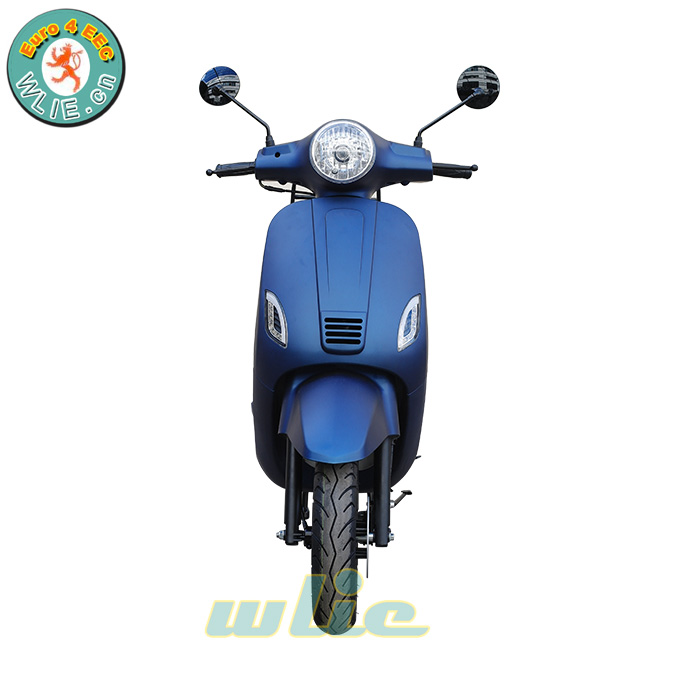

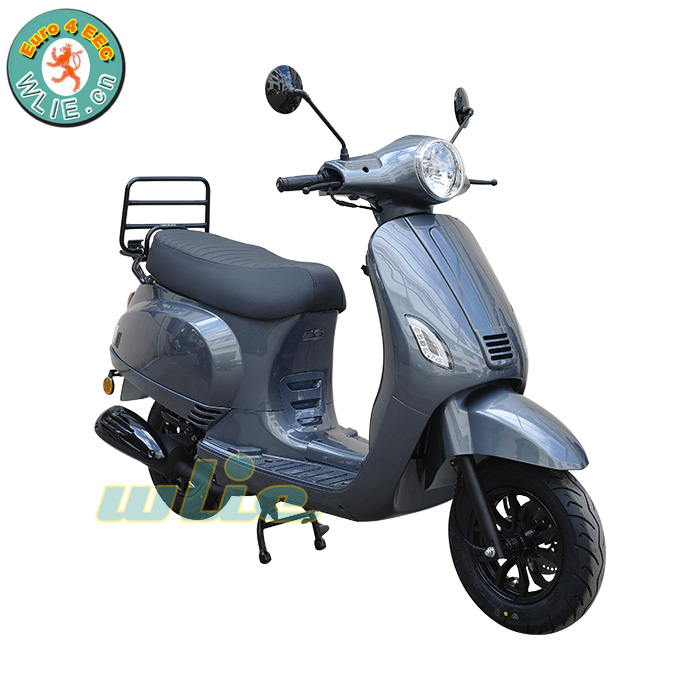

Multi-angle pictures of the product


Detail photos of the product

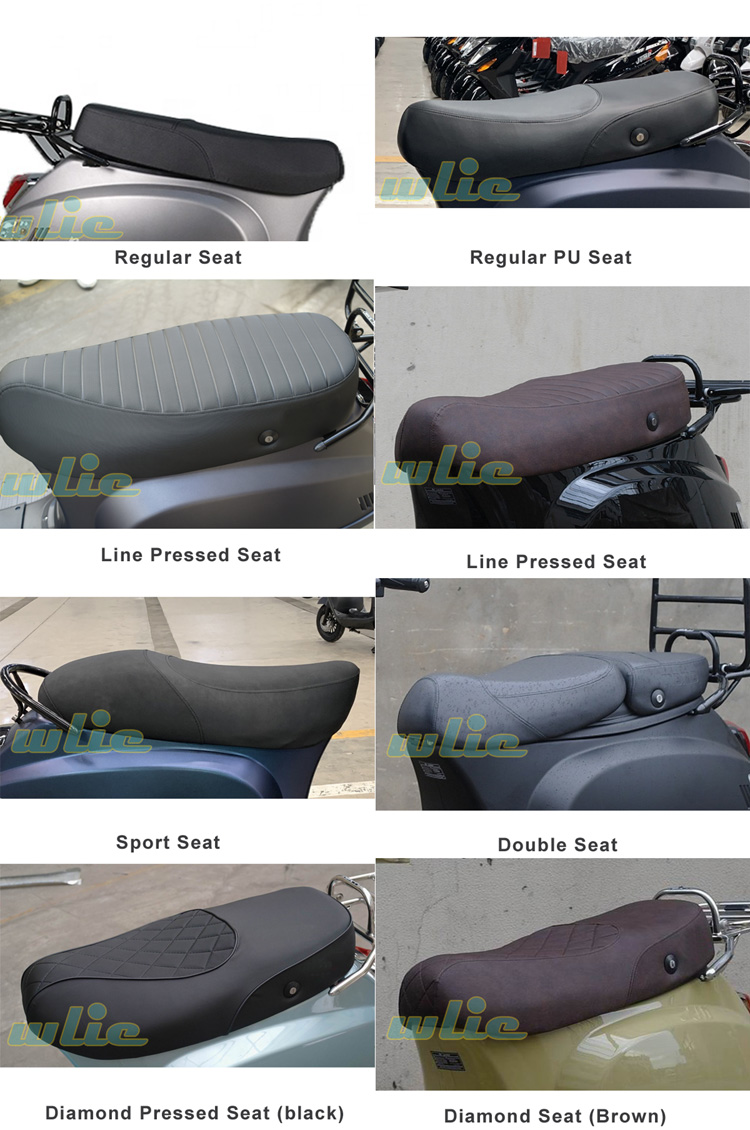

Seat choices:


Certificate


Accessories for Maple

Check the link: Bumper Set for Maple



Check the link: Windshield for Maple
